IS24C01

Features:

• Low Power CMOS Technology
       Standby Current less than 8 A (5.5V)
       Read Current (typical) less than 1 mA (5.5V)
       Write Current (typical) less than 3 mA (5.5V)
• Flexible Voltage Operation
       Vcc = 1.8V to 5.5V for 2 version
       Vcc = 2.5V to 5.5V for 3 version
• 400 KHz (I²C Protocol) Compatibility
• Hardware Data Protection
       Write Protect Pin
• Sequential Read Feature
• Filtered Inputs for Noise Suppression
• 8-pin PDIP and 8-pin SOIC packages
• 8-pin TSSOP (1K,2K, 4K & 8K only)
• 8-pin MSOP (1K,2K only)
• Self time write cycle with auto clear 5 ms @ 2.5V
• Organization:
       IS24C01 128x8 (one block of 128 bytes)
       IS24C02 256x8 (one block of 256 bytes)
       IS24C04 512x8 (two blocks of 256 bytes)
       IS24C08 1024x8 (four blocks of 256 bytes)
       IS24C16 2048x8 (eight blocks of 256 bytes)
• Page Write Buffer
• Two-Wire Serial Interface
       Bi-directional data transfer protocol
• High Reliability
       Endurance: 1,000,000 Cycles
       Data Retention: 100 Years
• Commercial, Industrial and Automotive temperature ranges

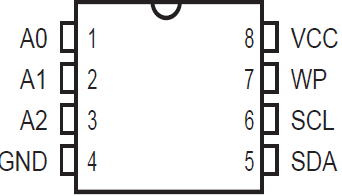

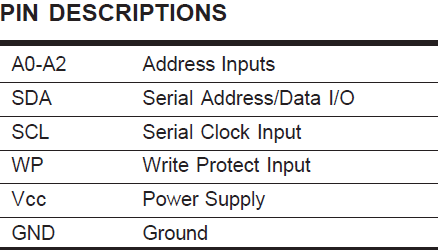

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage	0.5 to +6.25	V
VP	Voltage on Any Pin	0.5 to Vcc + 0.5	V
TBIAS	Temperature Under Bias	40 to +85	°C
TSTG	Storage Temperature	65 to +150	°C
IOUT	Output Current	5	mA

Description

The IS24CXX (refers to IS24C01, IS24C02, IS24C04,IS24C08, IS24C16) family is a low-cost and low voltage 2-wire Serial EEPROM. It is fabricated usingISSIs advanced CMOS EEPROM technology and provides a low power and low voltage operation. The IS24CXX family features a write protection feature, and is available in 8-pin DIP and 8-pin SOIC packages.

The IS24C01 is a 1K-bit EEPROM; IS24C02 is a 2K-bit EEPROM; IS24C04 is a 4K-bit EEPROM; IS24C08 is a 8Kbit EEPROM; IS24C16 is a 16K-bit EEPROM.

The IS24C01 and IS24C02 are available in 8-pin MSOP package. The IS24C01, IS24C02, IS24C04, and IS24C08 are available in 8-Pin TSSOP package.
