IS42LS32400A

Features: Clock frequency: 133 100, MHzFully synchronous; all signals referenced to apositive clock edgeInternal bank for hiding row access/prechargePower supply DDD VDDQVIS42LS81600A 2.5V 1.8V (2.5V tolerant)IS42LS16800A 2.5V 1.8V (2.5V tolerant)IS42LS32400A 2.5V1.8V (2.5V tolerant)IS42S81600A 3....

product image

IS42LS32400A Picture
See larger image
SeekIC No. : 004379028 Detail

IS42LS32400A: Features: Clock frequency: 133 100, MHzFully synchronous; all signals referenced to apositive clock edgeInternal bank for hiding row access/prechargePower supply DDD VDDQVIS42LS81600A 2.5V 1.8V (2.5...

IS42LS32400A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IS42LS32400A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Clock frequency: 133 100, MHz
 Fully synchronous; all signals referenced to apositive clock edge
 Internal bank for hiding row access/precharge
 Power supply
                             DDD             VDDQV
IS42LS81600A      2.5V            1.8V (2.5V tolerant)
IS42LS16800A      2.5V            1.8V (2.5V tolerant)
IS42LS32400A      2.5V            1.8V (2.5V tolerant)
IS42S81600A        3.3V            3.3V
IS42S16800A        3.3V            3.3V
IS42S32400A        3.3V            3.3V
LVTTL interface
Programmable burst length  (1, 2, 4, 8, full page)
Programmable burst sequence:Sequential/Interleave
Extended Mode Register
Programmable Power Reduction Feature by partial array activation during Self-Refresh
Auto Refresh (CBR)
Temp. Compensated Self Refresh.
Self Refresh with programmable refresh periods
4096 refresh cycles every 64 ms
Random column address every clock cycle
Programmable CAS latency (2, 3 clocks)
Burst read/write and burst read/single write operations capability
Burst termination by burst stop and precharge command
Industrial  Temperature Availability



Pinout

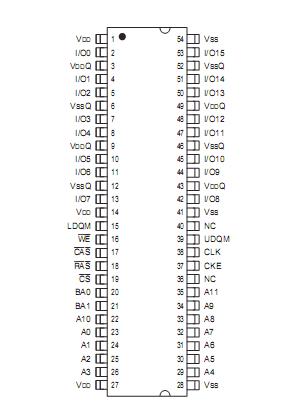

Connection Diagram


Specifications

Symbol Parameters Rating   Unit
VDD MAX Maximum Supply Voltage ¨C0.5 to +3.   -0.5 to +4.6  V
VDDQMAX
+4.6		 Maximum Supply Voltage for Output Buffer
V		     -0.5 to +3.6  -0.5 to
VIN Input Voltage  -0.5 to +3.6   -0.5 to +4.6  V
VOUT Output Voltage   -0.5 to +3.6   -0.5 to +4.6  V
PD MAX Allowable Power Dissipation  1  1  W
ICS Output Shorted Current 50  50  mA
TOPR Operating Temperature    Com.
                                         Ind.		   0 to +70
-40 to +85		    0 to +70
-40 to +85
TSTG Storage Temperature -55 to +125  -55 to +125
