Purchase IS61C1024, In-stock IS61C1024 From SeekIC.
MFG:SIS Package Cooled:SOJ
Part Number: IS61C1024
MFG: SIS
Package Cooled: SOJ
Description: The ISSI IS61C1024 and IS61C1024L are very high-speed,low power, 131,072-word by 8-bit CMOS static RAM...
- Table of contents:
IS61C1024
-
Suppliers
DataSheet
General Description
IS61C1024 General Description
The ISSI IS61C1024 and IS61C1024L are very high-speed,low power, 131,072-word by 8-bit CMOS static RAMs. They are fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices.
When CE1 is HIGH or CE2 is LOW (deselected), the device assumes a standby mode at which the power dissipation can be reduced by using CMOS input levels.
Easy memory expansion is provided by using two Chip Enable inputs, CE1 and CE2. The active LOW Write Enable (WE) controls both writing and reading of the memory.
The IS61C1024 and IS61C1024L are available in 32-pin 300-mil SOJ, and TSOP (Type I, 8x20), and sTSOP (Type I, 8 x 13.4) packages.
IS61C1024 Maximum Ratings
| Symbol | Parameter |
Value |
Unit |
| VTERM | Terminal Voltage with Respect to GND |
0.5 to+7.0 |
V |
| TBIAS | Temperature Under Bias |
55 to +125 |
|
| TSTG | Storage Temperature |
65 to +150 |
|
| PT | Power Dissipation |
1.5 |
W |
| IOUT | DC Output Current (LOW) |
20 |
mA |
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IS61C1024 Features
• High-speed access time: 12, 15, 20, 25 ns
• Low active power: 600 mW (typical)
• Low standby power: 500 W (typical) CMOS standby
• Output Enable (OE) and two Chip Enable
(CE1 and CE2) inputs for ease in applications
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single 5V (±10%) power supply
• Low power version available: IS61C1024L
• Commercial and industrial temperature ranges available
• Low active power: 600 mW (typical)
• Low standby power: 500 W (typical) CMOS standby
• Output Enable (OE) and two Chip Enable
(CE1 and CE2) inputs for ease in applications
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single 5V (±10%) power supply
• Low power version available: IS61C1024L
• Commercial and industrial temperature ranges available

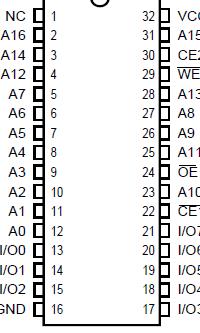

IS61C1024 Connection Diagram
IS61C1024
PDF/DataSheet Download
- Datasheet: IS61C1024
- File Size: 81966 KB
- Manufacturer: ISSI [Integrated Silicon Solution, Inc]
- Click here to Download
