IS61C64B

Notes:
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Expos

The ISSI IS61C64B is a very high-speed, low power, 8192-word by 8-bit static RAM. It is fabricated using ISSI's highperformance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 10 ns with low power consumption.

When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 250 W (typical) with CMOS input levels.

Easy memory expansion is provided by using one Chip Enable input, CE. The active LOW Write Enable (WE) controls both writing and reading of the memory.

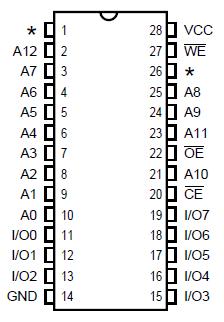

The IS61C64B is packaged in the JEDEC standard 28-pin, 300-mil SOJ, and TSOP.
