MFG:N/A Package Cooled:BGA D/C:2005+
MFG: N/A
Package Cooled: BGA
D/C: 2005+
Description: The ISSI IS61LV12816L is a high-speed, 2,097,152-bit static RAM organized as 131,072 words by 16 bits....
The ISSI IS61LV12816L is a high-speed, 2,097,152-bit static RAM organized as 131,072 words by 16 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 8 ns with low power consumption.
When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.
Easy memory expansion is provided by using Chip Enable and Output Enable inputs, CE and OE. The active LOW Write Enable (WE) controls both writing and reading of the memory. A data byte allows Upper Byte (UB) and Lower Byte (LB) access.

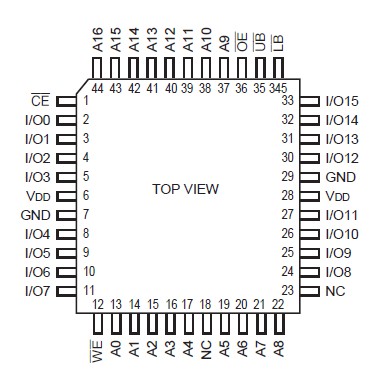

The IS61LV12816L is packaged in the JEDEC standard 44-pin TSOP (Type II), 44-pin LQFP, and 48-pin mini BGA (6mm x 8mm).
|
Symbol |
Parameter |
Value |
Unit |
|
VDD |
Power Supply Voltage Relative to GND |
0.5 to 4.0V |
V |
|
VTERM |
Terminal Voltage with Respect to GND |
0.5 to VDD + 0.5 |
V |
|
TSTG |
Storage Temperature |
65 to + 150 |
°C |
|
PT |
Power Dissipation |
1.0 |
W |
Note: 1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IS61LV12816L
PDF/DataSheet Download
The IS61LV12816-15T is designed as one kind of high-speed, 2,097,152-bit static RAM device that is packaged in the JEDEC standard 44-pin 400-mil SOJ, 44-pin TSOP, 44-pin LQFP, and 48-pin mini BGA (6mm x 8mm). And this device assumes a standby mode at which t...
The ISSI IS61LV12816 is a high-speed, 2,097,152-bit static RAM organized as 131,072 words by 16 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit designtechniques, yields acce...
