MFG:ISSI
Part Number: IS61LV256
MFG: ISSI
Description: The ISSI IS61LV256 is a very high-speed, low power, 32,768-word by 8-bit static RAM. It is fabricated ...
- Table of contents:
IS61LV256
-
Suppliers
DataSheet
General Description
IS61LV256 General Description
The ISSI IS61LV256 is a very high-speed, low power, 32,768-word by 8-bit static RAM. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 12 ns maximum.
When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation is reduced to 50 mW (typical) with CMOS input levels.
Easy memory expansion is provided by using an active LOW Chip Enable (CE). The active LOW Write Enable (WE) controls both writing and reading of the memory.
The IS61LV256 is available in the JEDEC standard 28-pin, 300-mil DIP and SOJ, plus the 450-mil TSOP package.
IS61LV256 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VTERM | Terminal Voltage with Respect toGND | 0.5 to VDD+4.6 | V |
| TSTG | Storage Temperature | 65 to +125 | °C |
| PT | Power Dissipation | 65 to +150 | W |
| IOUT | DC Output Current (LOW) | 20 | mA |
IS61LV256 Features
• High-speed access time: 12, 15, 20, 25 ns
• Automatic power-down when chip is deselected
• CMOS low power operation
- 345 mW (max.) operating
- 7 mW (max.) CMOS standby
• TTL compatible interface levels
• Single 3.3V power supply
• Fully static operation: no clock or refresh required
• Three-state outputs
• Automatic power-down when chip is deselected
• CMOS low power operation
- 345 mW (max.) operating
- 7 mW (max.) CMOS standby
• TTL compatible interface levels
• Single 3.3V power supply
• Fully static operation: no clock or refresh required
• Three-state outputs

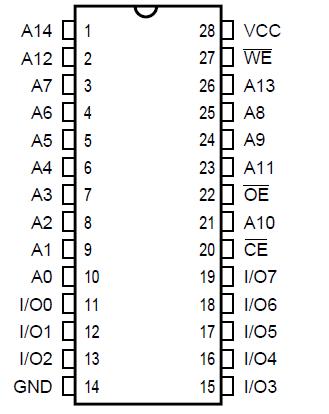

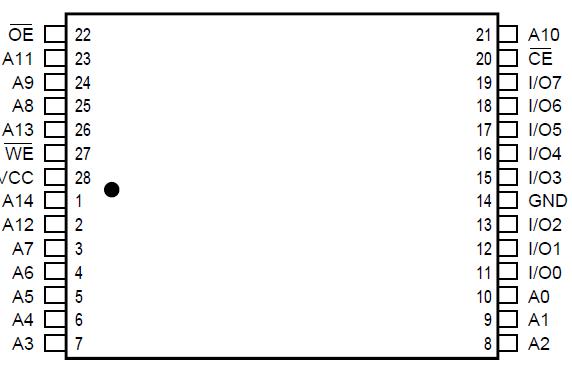

IS61LV256 Connection Diagram
IS61LV256
PDF/DataSheet Download
- Datasheet: IS61LV256
- File Size: 124742 KB
- Manufacturer: ICSI [Integrated Circuit Solution Inc]
- Click here to Download
