Purchase IS61LV5128, In-stock IS61LV5128 From SeekIC.
D/C:TSOP44
Part Number: IS61LV5128
D/C: TSOP44
Description: The ISSI IS61LV5128 is a very high-speed, low power, 524,288-word by 8-bit CMOS static RAM. The IS61LV...
- Table of contents:
IS61LV5128
-
Suppliers
DataSheet
General Description
IS61LV5128 General Description
The ISSI IS61LV5128 is a very high-speed, low power, 524,288-word by 8-bit CMOS static RAM. The IS61LV5128 is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices.
When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 250 W (typical) with CMOS input levels. The IS61LV5128 operates from a single 3.3V power supply and all inputs are TTL-compatible.
The IS61LV5128 is available in 36-pin 400-mil SOJ, 36- pin mini BGA, and 44-pin TSOP (Type II) packages.
IS61LV5128 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VTERM | Terminal Voltage with Respect toGND | 0.5 to Vcc+4.6 | V |
| TSTG | Storage Temperature | 65 to +125 | °C |
| PT | Power Dissipation | 65 to +150 | °C |
| IOUT | DC Output Current (LOW) | 20 | mA |
IS61LV5128 Features
• High-speed access times: 10, 12 and 15 ns
• High-performance, low-power CMOS process
• Multiple center power and ground pins for greater noise immunity
• Easy memory expansion with CE and OE options
• CE power-down
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single 3.3V power supply
• Packages available:
36-pin 400-mil SOJ
36-pin miniBGA
44-pin TSOP (Type II)
• High-performance, low-power CMOS process
• Multiple center power and ground pins for greater noise immunity
• Easy memory expansion with CE and OE options
• CE power-down
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single 3.3V power supply
• Packages available:
36-pin 400-mil SOJ
36-pin miniBGA
44-pin TSOP (Type II)

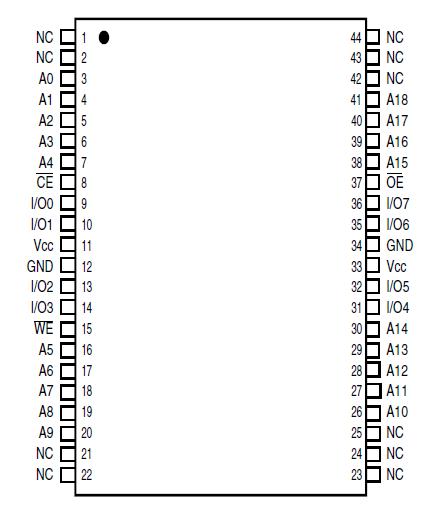

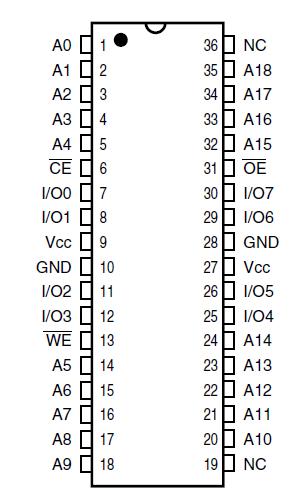

IS61LV5128 Connection Diagram
IS61LV5128-10
PDF/DataSheet Download
- Datasheet: IS61LV5128-10
- File Size: 74912 KB
- Manufacturer: ISSI [Integrated Silicon Solution, Inc]
- Click here to Download
