Part Number: IS62C1024



MFG: ISSI

Package Cooled: ORG PACKING

D/C: 08+

Description: The ISSI IS62C1024 is a low power,131,072-word by 8-bit CMOS static RAM. It is fabricated using ISSI's high-performance...


Urgent Purchase

IS62C1024 General Description


The ISSI IS62C1024 is a low power,131,072-word by 8-bit CMOS static RAM. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices.

When CE1 is HIGH or CE2 is LOW (deselected), the device assumes a standby mode at which the power dissipation can be reduced by using CMOS input levels.

Easy memory expansion is provided by using two Chip Enable inputs, CE1 and CE2. The active LOW Write Enable (WE) controls both writing and reading of the memory.

The IS62C1024 is available in 32-pin 525-mil plastic SOP and TSOP (type 1) packages.

IS62C1024 Maximum Ratings

Symbol
Parameter
Value
Unit
VTERM Terminal Voltage with Respect to GND
0.5 to +7.0
V
TBIAS Temperature Under Bias
10 to +85
°C
TSTG Storage Temperature
65 to +150
°C
PT Power Dissipation
1.5
W
IOUT DC Output Current (LOW)
20
mA

IS62C1024 Features

* High-speed access time: 35, 45, 55, 70 ns
* Low active power: 450 mW (typical)
* Low standby power: 500 W (typical) CMOS standby
* Output Enable (OE) and two Chip Enable (CE1 and CE2) inputs for ease in applications
* Fully static operation: no clock or refresh required
* TTL compatible inputs and outputs
* Single 5V (±10%) power supply

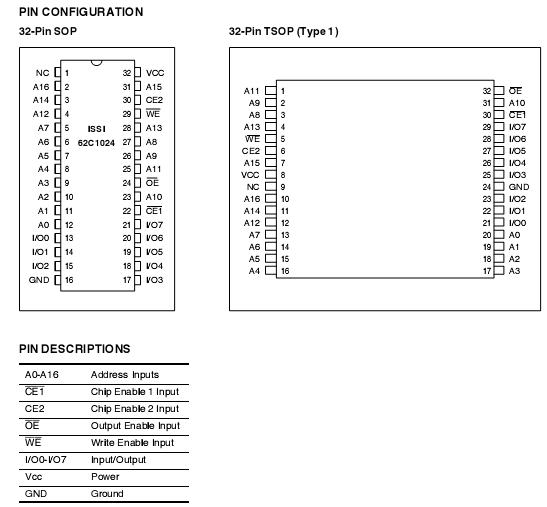

IS62C1024 Connection Diagram

IS62C1024 Connection Diagram
