Part Number: IS62C256





Package Cooled: DIP



Description: The ISSI IS62C256 is a low power, 32,768 word by 8-bit CMOS static RAM. It is fabricated using ISSI's highperformance, ...


Urgent Purchase

IS62C256 General Description


The ISSI IS62C256 is a low power, 32,768 word by 8-bit CMOS static RAM. It is fabricated using ISSI's highperformance, low power CMOS technology.

IS62C256 Maximum Ratings

Symbol Parameter Value Unit
VTERM Terminal Voltage with Respect to GND 0.5 to +7.0 V
TBIAS Temperature Under Bias 55 to +125 C
TSTG Storage Temperature 65 to +150 C
PT Power Dissipation 0.5 W
IOUT DC Output Current (LOW) 20 mA

IS62C256 Features

• Access time: 45, 70 ns
• Low active power: 200 mW (typical)
• Low standby power
   - 250 mW (typical) CMOS standby
   - 28 mW (typical) TTL standby
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single 5V power supply

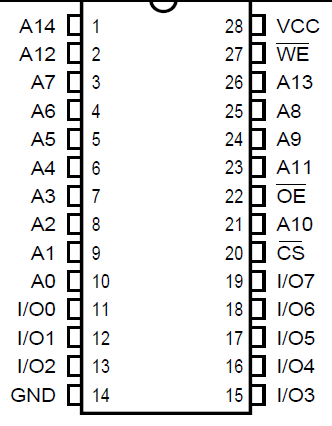

IS62C256 Connection Diagram

IS62C256 Connection Diagram

IS62C256 datasheet

IS62C256-45UI
PDF/DataSheet Download

  • Datasheet: IS62C256-45UI
  • File Size: 38912 KB
  • Manufacturer: ISSI [Integrated Silicon Solution, Inc]
  • Click here to Download
