Product Details

Description



Features:

• Access time: 25 ns, 45 ns
• Low active power: 200 mW (typical)
• Low standby power
- 150 W (typical) CMOS standby
- 15 mW (typical) operating
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single 5V power supply
• Lead-free available
• Industrial and Automotive temperatures available

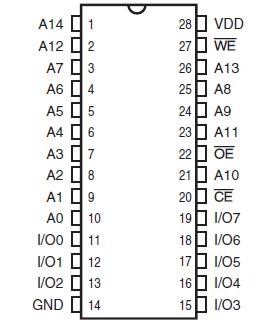

Pinout

Connection Diagram




Specifications

VTERM Terminal Voltage with Respect to GND........ 0.5 to +7.0 V
TSTG Storage Temperature ...............65 to +150
PT Power Dissipation .........................0.5 W
IOUT DC Output Current (LOW) ........20 mA




Description

The ISSI IS62C256AL/IS65C256AL is a low power,32,768 word by 8-bit CMOS static RAM. IS62C256AL is fabricated using ISSI's high-performance, low power CMOS technology.

WhenCE is HIGH (deselected), the IS62C256AL assumes a standby mode at which the power dissipation can be reduced down to 150 W (typical) at CMOS input levels.

Easy memory expansion is provided by using an active LOW Chip Select (CE) input and an active LOW Output Enable (OE) input. The active LOW Write Enable (WE) controls both writing and reading of the memory.

The IS62C256AL/IS65C256AL is pin compatible with other 32Kx8 SRAMs in plastic SOP or TSOP (Type I) package.
