IS62WV2816BLL

Features: •High-speed access time: 45ns, 55ns, 70ns•CMOS low power operation 36 mW (typical) operating 9 µW (typical) CMOS standby•TTL compatible interface levels•Single power supply 1.65V--2.2V VDD(62WV12816ALL) 2.5V--3.6V VDD(62WV12816BLL)•Fully static opera...

product image

IS62WV2816BLL Picture
See larger image
SeekIC No. : 004379274 Detail

IS62WV2816BLL: Features: •High-speed access time: 45ns, 55ns, 70ns•CMOS low power operation 36 mW (typical) operating 9 µW (typical) CMOS standby•TTL compatible interface levels•Sin...

IS62WV2816BLL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IS62WV2816BLL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•High-speed access time: 45ns, 55ns, 70ns
•CMOS low power operation
  36 mW (typical) operating
  9 µW (typical) CMOS standby
•TTL compatible interface levels
•Single power supply
  1.65V--2.2V VDD (62WV12816ALL)
  2.5V--3.6V VDD (62WV12816BLL)
•Fully static operation: no clock or refresh
  required
•Three state outputs
•Data control for upper and lower bytes
•Industrial temperature available
•2CS Option Available
•Lead-free available


Pinout

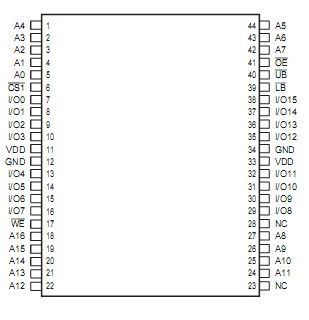

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VTERM
Terminal Voltage with Respect to GND		 0.2 to VDD +0.3
V
TSTG
Storage Temperature
65 to +150
PT
Power Dissipation		 1.0 W



Description

The ISSI IS62WV12816ALL/ IS62WV12816BLL IS62WV2816BLL are  high-speed, 2M bit static RAMs organized as 128K words by 16bits. IS62WV2816BLL is fabricated using ISSI's high-performance CMOStechnology. This highly reliable process coupled withinnovative circuit design techniques, yields high-performance and low power consumption devices.
WhenCS1is HIGH (deselected) or when CS2 is LOW(deselected) or CS1is LOW, CS2 is HIGH and both LB and UB are HIGH, the IS62WV2816BLL assumes a standby mode at which the power dissipation can be reduced down withCMOS input levels.
Easy memory expansion is provided by using Chip Enableand Output Enable inputs. The active LOW Write Enable(WE) controls both writing and reading of the memory. Adata byte allows Upper Byte (UB) and Lower Byte (LB) access.
The IS62WV12816ALL and IS62WV12816BLL IS62WV2816BLL are packagedin the JEDEC standard 48-pin mini BGA (6mm x 8mm) and 44-Pin TSOP (TYPE II).
