Features: • Single-chip voice Record/Playback solution
• Single +3 volt supply
• Low-power consumption Operating current: ICC Play = 15 mA (typical) ICC Rec = 25 mA (typical) Standby current: 1 A (typical)
• Single-chip durations of 4, 5, 6, and 8 minutes
• High-quality, natural voice/audio reproduction
• AutoMute feature provides background noise attenuation during periods of silence
• No algorithm development required
• Microcontroller SPI or Microwire™ Serial Interface
• Fully addressable to handle multiple messages
• Nonvolatile message storage
• Power consumption controlled by SPI or Microwire control register
• 100-year message retention (typical)
• 100K record cycles (typical)
• On-chip clock source
• Available in die form, PDIP, SOIC, TSOP, and chip scale packaging (CSP)
• Extended temperature (20°C to + 70°C) and industrial temperature (40°C to +85°C) versions available

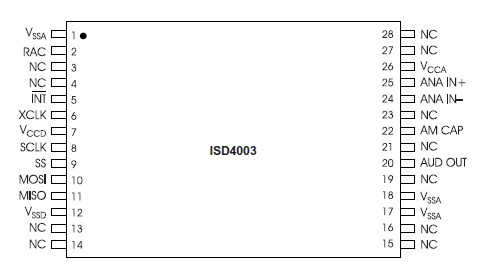

Pinout

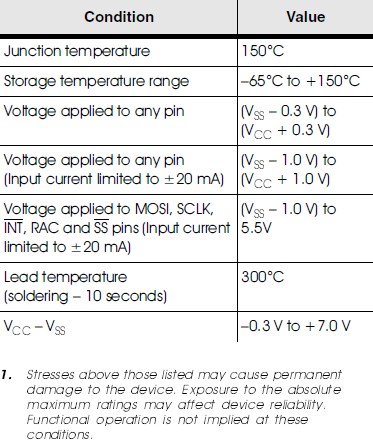

Specifications
DescriptionThe ISD4003 ChipCorder® Products provide highquality, 3-volt, single-chip Record/Playback solutions for 4- to 8-minute messaging applications which are ideal for cellular phones and other portable products. The CMOS-based devices include an on-chip oscillator, antialiasing filter, smoothing filter, AutoMute™ feature, audio amplifier, and high density, multilevel Flash storage array. The ISD4003 series is designed to be used in a microprocessor- or microcontroller-based system. Address and control are accomplished through a Serial Peripheral Interface (SPI) or Microwire Serial Interface to minimize pin count.
Recordings are stored in on-chip nonvolatile memory cells, providing zero-power message storage. This unique, single-chip solution is made possible through ISD's patented multilevel storage technology. Voice and audio signals are stored directly into memory in their natural form, providing high-quality, solid-state voice reproduction.
ISD4003 Data Sheet
