ISG510065

Features: • 3.3 V SINGLE SUPPLY OPERATION• LOW POWER CONSUMPTION (400 mW)• LOW DISTORTION• 82 dB TOTAL CONVERSION GAIN• 55 dB TOTAL GAIN CONTROL RANGE• LOW LO-RF LEAKAGEApplication• Cable Set-Top Boxes • Digital Cable Ready TV Sets.PinoutSpecificatio...

product image

ISG510065 Picture
See larger image
SeekIC No. : 004379413 Detail

ISG510065: Features: • 3.3 V SINGLE SUPPLY OPERATION• LOW POWER CONSUMPTION (400 mW)• LOW DISTORTION• 82 dB TOTAL CONVERSION GAIN• 55 dB TOTAL GAIN CONTROL RANGE• LOW LO-RF ...

ISG510065 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISG510065
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3.3 V SINGLE SUPPLY OPERATION
• LOW POWER CONSUMPTION (400 mW)
• LOW DISTORTION
• 82 dB TOTAL CONVERSION GAIN
• 55 dB TOTAL GAIN CONTROL RANGE
• LOW LO-RF LEAKAGE


Application

• Cable Set-Top Boxes
• Digital Cable Ready TV Sets.

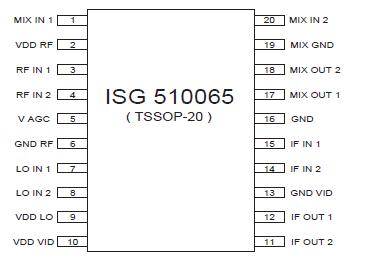

Pinout

Connection Diagram


Specifications

SYMBOLS PARAMETERS
UNITS
RATINGS
VDD (GND) Supply Voltage (GND)
V
-0.3 to +3.6
TOP Operating Temperature
-40 to +85
TSTG Storage Temperature
-65 to +150
  Junction Temperature
+150
  Thermal Resistance (Ø ja)
/W
34

Note:
1. Operation in excess of any one of these parameters may result in permanent damage.


Description

The ISG510065 is a downconverter designed to be used as an Out-of-Band Tuner for use in CATV set-top box and Digital Cable Ready TV applications. The ISG510065 consists of an input AGC amplifier, mixer, and a video/AGC amplifier. This device offers optimum performance with low power consumption and low distortion. There are two Package Options MLP 28 and TSSOP 20.
