ISL4245E
-
Suppliers
DataSheet
General Description
ISL4245E General Description
The Intersil ISL4238E/44E/45E devices are 2.7V to 5.5V powered RS-232 transmitters/receivers which meet ElA/TIA-232 and V.28/V.24 specifications, even at VCC = 3.0V. Additionally, they provide ±15kV ESD protection (IEC6100-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational, and even lower standby, power consumption is critical. Efficient on-chip charge pumps, coupled with manual and enhanced automatic powerdown functions, reduce the standby supply current to a 10nA trickle. Tiny 5mm x 5mm Quad Flat No-Lead (QFN) packaging and the use of small, low value capacitors ensure board space savings as well. Data rates greater than 250kbps (ISL4238E/44E)/1Mbps (ISL4245E) are guaranteed at worst case load conditions.
The ISL424XE are 3 driver, 5 receiver (DTE) devices that, coupled with the QFN package, provide the industry's smallest, lowest power complete serial port suitable for PDAs, and laptop or notebook computers. The 5x5 QFN requires 60% less board area than a 28 lead TSSOP, and is nearly 20% thinner. The devices also include a noninverting always-active receiver for "wake-up" capability.
The ISL4238E is a 5 driver, 3 receiver device optimized for DCE applications with full hardware handshaking. It also includes a noninverting always-active receiver for RING INDICATOR monitoring. Transmitter and logic inputs include active feedback resistors that retain the input state once driven to a valid logic level.
These devices feature an enhanced automatic powerdown function which powers down the on-chip power-supply and driver circuits. This occurs when all receiver and transmitter inputs detect no signal transitions for a period of 30sec. These devices power back up, automatically, whenever they sense a transition on any transmitter or receiver input.
Table 1 summarizes the features of the ISL4238E/4XE, while Application Note AN9863 summarizes the features of each device comprising the 3V RS-232 family.
ISL4245E Maximum Ratings
VCC to Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 6V
V+ to Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 7V
V- to Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3V to -7V
V+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14V
Input Voltages
TIN , FORCEOFF, FORCEON. . . . . . . . . . . . . . . . . . . -0.3V to 6V
RIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25V
Output Voltages
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±13.2V
ROUT , INVALID. . . . . . . . . . . . . . . . . . . . . . . . -0.3V to VCC +0.3V
Short Circuit Duration
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . See Specification Table
V+ to Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 7V
V- to Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3V to -7V
V+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14V
Input Voltages
TIN , FORCEOFF, FORCEON. . . . . . . . . . . . . . . . . . . -0.3V to 6V
RIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25V
Output Voltages
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±13.2V
ROUT , INVALID. . . . . . . . . . . . . . . . . . . . . . . . -0.3V to VCC +0.3V
Short Circuit Duration
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . See Specification Table
ISL4245E Features
* Parameters Fully Specified for 10% Tolerance Supplies and Full Industrial Temp Range
* Available in Small QFN (5mm x 5mm) Package which is 60% Smaller than a 28 Lead TSSOP
* ESD Protection for RS-232 I/O Pins to ±15kV (IEC6100)
* DTE (ISL4244E/45E) and DCE (ISL4238E) Versions
* Lowest Supply Current in Powerdown . . . . . . . . . . . .10nA
* Active Feedback Resistors on TX and Logic Inputs (ISL4238E)
* Flow Through Pinouts
* Manual and Enhanced Automatic Powerdown Features
* Guaranteed Minimum Data Rate
* Latch-Up Free
* On-Chip Charge Pumps Require Only Four External 0.1F Capacitors
* Wide Power Supply Range. . . . . . . Single +2.7V to +5.5V
* Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V
* RS-232 Compatible with VCC = 2.7V
* Pb-free Available as an Option
* Available in Small QFN (5mm x 5mm) Package which is 60% Smaller than a 28 Lead TSSOP
* ESD Protection for RS-232 I/O Pins to ±15kV (IEC6100)
* DTE (ISL4244E/45E) and DCE (ISL4238E) Versions
* Lowest Supply Current in Powerdown . . . . . . . . . . . .10nA
* Active Feedback Resistors on TX and Logic Inputs (ISL4238E)
* Flow Through Pinouts
* Manual and Enhanced Automatic Powerdown Features
* Guaranteed Minimum Data Rate
* Latch-Up Free
* On-Chip Charge Pumps Require Only Four External 0.1F Capacitors
* Wide Power Supply Range. . . . . . . Single +2.7V to +5.5V
* Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V
* RS-232 Compatible with VCC = 2.7V
* Pb-free Available as an Option
ISL4245E Typical Application
* Any Space Constrained System Requiring RS-232 Ports
- Battery Powered, Hand-Held, and Portable Equipment
- Laptop Computers, Notebooks
- PDAs and Palmtops, Data Cables
- Cellular/Mobile Phones, Digital Cameras, GPS Receivers
- Battery Powered, Hand-Held, and Portable Equipment
- Laptop Computers, Notebooks
- PDAs and Palmtops, Data Cables
- Cellular/Mobile Phones, Digital Cameras, GPS Receivers

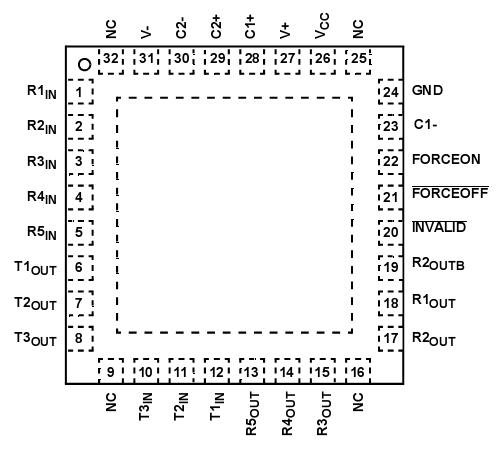

ISL4245E Connection Diagram
ISL4245E
PDF/DataSheet Download
- Datasheet: ISL4245E
- File Size: 468597 KB
- Manufacturer: INTERSIL [Intersil Corporation]
- Click here to Download
- ·ISL12026
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12026IBZ
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12026IVZ
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12027
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 481227 KB
- ·ISL12027IB27AZ
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12027IB27AZ-T
- INTERSIL [Intersil Corporation]
- Real Time Clock/Calendar with EEPROM
- 424887 KB
- ·ISL12027IB27Z
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12027IB27Z-T
- INTERSIL [Intersil Corporation]
- Real Time Clock/Calendar with EEPROM
- 424887 KB
ISL4245E Relative Products
ISL4244EIRZ-T
IC 3DRVR/5RCVR RS232 3V 32-QFN
-
ISL4244EIRZ
IC TXRX RS232 2.7-5.5V 32QFN
-
ISL4244EIR-T
IC 3DRVR/5RCVR RS232 3V 32-QFN
-
ISL4244EIR
IC 3DRVR/5RCVR RS232 3V 32-QFN
ISL4244E
The Intersil ISL4238E, ISL4244E and ISL4245E devices are 2.7V to 5.5V powered RS-232 transmitters/receivers which meet ElA/TIA-232 and V.28/V.24 specifications, even at VCC = 3.0V. Additionally, they provide ±15kV ESD protection (IEC6100-4-2 Air Gap and Huma...

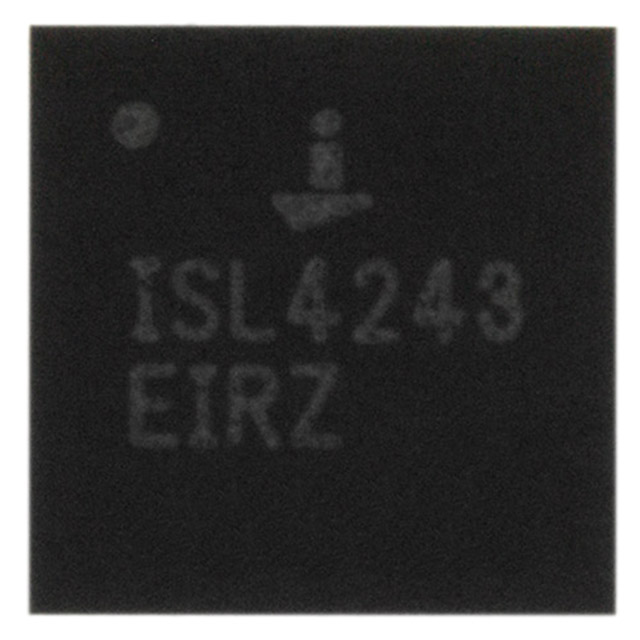

ISL4243EIRZ-T
