General Description
ISL43110 General Description
The Intersil ISL4311X are precision, high performance analog switches that are fully specified for 3.3V, 5V, and 12V operation, and feature improved leakage, Icc, and switching time specifications.
Designed to operate from a single +2.4V to +12V supply, the low supply current (1A Max over the temperature and voltage ranges) and low leakage currents (1nA) make these switches ideal for battery powered applications.
Low RON and fast switching speeds over a wide operating supply range increase these devices usefulness in industrial equipment, portable instruments, and as input signal multiplexers for new generation, low supply voltage data converters. Some of the smallest packages are available alleviating board space limitations, and making Intersil's newest line of low-voltage switches an ideal solution.
The ISL4311X are single-pole/single-throw (SPST) switches, with the ISL43110 being normally open (NO), and the ISL43111 being normally closed (NC).
ISL43110 Maximum Ratings
V+ to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to15V
Input Voltages IN (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to ((V+) + 0.3V)
NO, NC (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to ((V+) + 0.3V)
Output Voltages COM (Note 2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to ((V+) + 0.3V)
Continuous Current (Any Terminal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA
Peak Current NO, NC, or COM (Pulsed 1ms, 10% Duty Cycle, Max) . . . . . . . . . . . . . . . . . . . . 30mA
ESD Rating (Per MIL-STD-883 Method 3015). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >2kV
Input Voltages IN (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to ((V+) + 0.3V)
NO, NC (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to ((V+) + 0.3V)
Output Voltages COM (Note 2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to ((V+) + 0.3V)
Continuous Current (Any Terminal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA
Peak Current NO, NC, or COM (Pulsed 1ms, 10% Duty Cycle, Max) . . . . . . . . . . . . . . . . . . . . 30mA
ESD Rating (Per MIL-STD-883 Method 3015). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >2kV
ISL43110 Features
• Fully Specified at 3.3V, 5V, and 12V Supplies
• Available in SOT-23 Packaging
• Single Supply Operation. . . . . . . . . . . . . . . . . +2.4V to +12V
• ON Resistance (RON Max). . . . . . . . . . . . . 20 (V+ = 5V)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 (V+ = 12V)
• RON Flatness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5
• Charge Injection (Max) . . . . . . . . . . . . . . . . . . . . . . . . . . 10pC
• Low Power Consumption (PD Max). . . . . . . . . . . . . . . .<5W
• Low Leakage Current (Max at 85°C) . 10nA (Off Leakage)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20nA (On Leakage)
• Fast Switching Action
- tON (Max) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80ns
- tOFF (Max) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50ns
• Minimum 2000V ESD Protection per Method 3015.7
• TTL, CMOS Compatible
• Pb-Free Available (RoHS Compliant)
• Available in SOT-23 Packaging
• Single Supply Operation. . . . . . . . . . . . . . . . . +2.4V to +12V
• ON Resistance (RON Max). . . . . . . . . . . . . 20 (V+ = 5V)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 (V+ = 12V)
• RON Flatness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5
• Charge Injection (Max) . . . . . . . . . . . . . . . . . . . . . . . . . . 10pC
• Low Power Consumption (PD Max). . . . . . . . . . . . . . . .<5W
• Low Leakage Current (Max at 85°C) . 10nA (Off Leakage)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20nA (On Leakage)
• Fast Switching Action
- tON (Max) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80ns
- tOFF (Max) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50ns
• Minimum 2000V ESD Protection per Method 3015.7
• TTL, CMOS Compatible
• Pb-Free Available (RoHS Compliant)
ISL43110 Typical Application
• Battery Powered, Handheld, and Portable Equipment
- Cellular/Mobile Phones, Pagers
- Laptops, Notebooks, Palmtops, PDAs
• Communications Systems
- Radios
- PBX, PABX
• Test Equipment
- Logic and Spectrum Analyzers
- Portable Meters, DVM, DMM
• Medical Equipment
- Ultrasound, MRI, CAT SCAN
- Electrocardiograph, Blood Analyzer
• Heads-Up Displays
• Audio and Video Switching
• General Purpose Circuits
- +3V/+5V DACs and ADCs
- Sample and Hold Circuits
- Digital Filters
- Operational Amplifier Gain Switching Networks
- High Frequency Analog Switching
- High Speed Multiplexing
- Integrator Reset Circuits
- Cellular/Mobile Phones, Pagers
- Laptops, Notebooks, Palmtops, PDAs
• Communications Systems
- Radios
- PBX, PABX
• Test Equipment
- Logic and Spectrum Analyzers
- Portable Meters, DVM, DMM
• Medical Equipment
- Ultrasound, MRI, CAT SCAN
- Electrocardiograph, Blood Analyzer
• Heads-Up Displays
• Audio and Video Switching
• General Purpose Circuits
- +3V/+5V DACs and ADCs
- Sample and Hold Circuits
- Digital Filters
- Operational Amplifier Gain Switching Networks
- High Frequency Analog Switching
- High Speed Multiplexing
- Integrator Reset Circuits

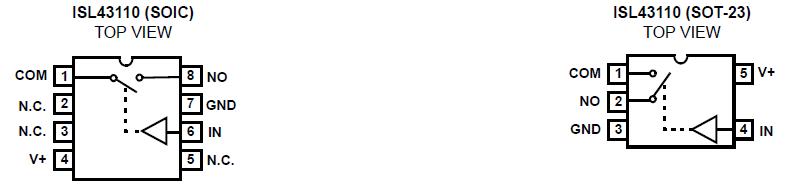

ISL43110 Connection Diagram
ISL43110
PDF/DataSheet Download
- Datasheet: ISL43110
- File Size: 767101 KB
- Manufacturer: INTERSIL [Intersil Corporation]
- Click here to Download
- ·ISL12026
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12026IBZ
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12026IVZ
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12027
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 481227 KB
- ·ISL12027IB27AZ
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12027IB27AZ-T
- INTERSIL [Intersil Corporation]
- Real Time Clock/Calendar with EEPROM
- 424887 KB
- ·ISL12027IB27Z
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12027IB27Z-T
- INTERSIL [Intersil Corporation]
- Real Time Clock/Calendar with EEPROM
- 424887 KB
ISL43110 Relative Products

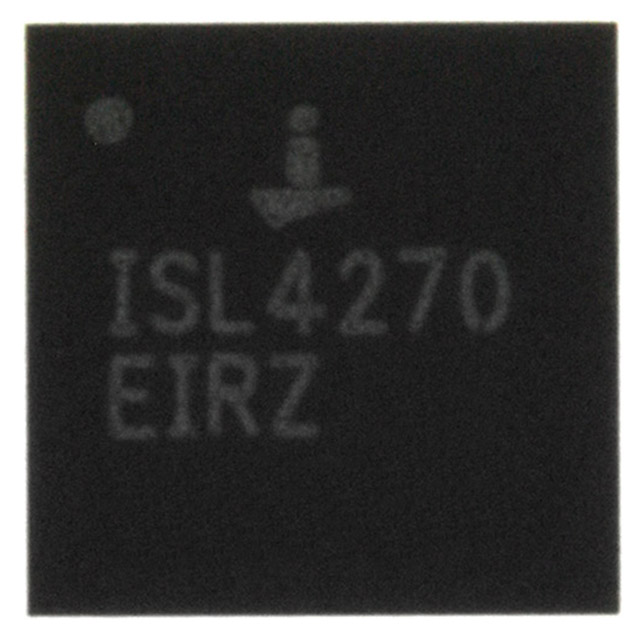

ISL4270EIRZ-T
