General Description
ISL5827 Maximum Ratings
Digital Supply Voltage DVDD to DGND . . . . . . . . . . . . . . . . . . +3.6V
Analog Supply Voltage AVDD to AGND . . . . . . . . . . . . . . . . . . +3.6V
Grounds, AGND TO DGND . . . . . . . . . . . . . . . . . . . . . -0.3V to +0.3V
Digital Input Voltages (DATA, CLK, SLEEP) . . . . . . . . . . DVDD + 0.3V
Reference Input Voltage Range. . . . . . . . . . . . . . . . . .. AVDD + 0.3V
Analog Output Current (IOUT) . . . . . . . . . . . . . . . . . . . . . . . . . 24mA
Analog Supply Voltage AVDD to AGND . . . . . . . . . . . . . . . . . . +3.6V
Grounds, AGND TO DGND . . . . . . . . . . . . . . . . . . . . . -0.3V to +0.3V
Digital Input Voltages (DATA, CLK, SLEEP) . . . . . . . . . . DVDD + 0.3V
Reference Input Voltage Range. . . . . . . . . . . . . . . . . .. AVDD + 0.3V
Analog Output Current (IOUT) . . . . . . . . . . . . . . . . . . . . . . . . . 24mA
ISL5827 Features
• Low Power . . . . . 233mW with 20mA Output at 130MSPS
• Adjustable Full Scale Output Current. . . . . 2mA to 20mA
• Guaranteed Gain Matching < 0.14dB
• +3.3V Power Supply
• 3V LVCMOS Compatible Inputs
• Excellent Spurious Free Dynamic Range 73dBc to Nyquist, fS = 130MSPS, fOUT = 10MHz)
• UMTS Adjacent Channel Power = 70dB at 19.2MHz
• EDGE/GSM SFDR = 90dBc at 11MHz in 20MHz Window
• Dual, 3.3V, Lower Power Replacement for AD9765
• Adjustable Full Scale Output Current. . . . . 2mA to 20mA
• Guaranteed Gain Matching < 0.14dB
• +3.3V Power Supply
• 3V LVCMOS Compatible Inputs
• Excellent Spurious Free Dynamic Range 73dBc to Nyquist, fS = 130MSPS, fOUT = 10MHz)
• UMTS Adjacent Channel Power = 70dB at 19.2MHz
• EDGE/GSM SFDR = 90dBc at 11MHz in 20MHz Window
• Dual, 3.3V, Lower Power Replacement for AD9765
ISL5827 Typical Application
• Cellular Infrastructure - Single or Multi-Carrier: IS-136, S-95, GSM, EDGE, CDMA2000, WCDMA, TDS-CDMA
• BWA Infrastructure
• Quadrature Transmit with IF Range 080MHz
• Medical/Test Instrumentation and Equipment
• Wireless Communication Systems
• BWA Infrastructure
• Quadrature Transmit with IF Range 080MHz
• Medical/Test Instrumentation and Equipment
• Wireless Communication Systems

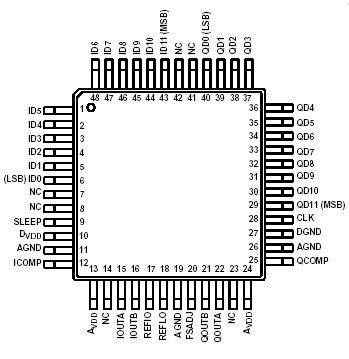

ISL5827 Connection Diagram
ISL5827
