Purchase ISL5829, In-stock ISL5829 From SeekIC.
Part Number: ISL5829
Description: The ISL5829 is a dual 12-bit,130/210+MSPS (Mega Samples Per Second), CMOS, high speed,low power, D/A (...
- Table of contents:
ISL5829
-
Suppliers
DataSheet
General Description
ISL5829 General Description
The ISL5829 is a dual 12-bit,130/210+MSPS (Mega Samples Per Second), CMOS, high speed,low power, D/A (digital to analog) converter, designed specifically for use in high performance communication systems such as base transceiver stations utilizing 2.5G or 3G cellular protocols.
This device complements the CommLink ISL5x61 and ISL5x29 families of high speed converters, which include 8-,10-, 12-, and 14-bit devices.
ISL5829 Maximum Ratings
Digital Supply Voltage DVDD to DGND . . . . . . . . ... . . . . . . . . . +3.6V
Analog Supply Voltage AVDD to AGND . . . . . . . . .. . . . . . . . . . +3.6V
Grounds, AGND TO DGND . . . . . . . . . . . . . . . . . .... . . -0.3V to +0.3V
Digital Input Voltages (DATA, CLK, SLEEP). . . . . ..... . . . DVDD+ 0.3V
Reference Input Voltage Range . . . . . . . . . . . . .. . . . . . AVDD+ 0.3V
Analog Output Current (IOUT) . . . . . . . . . . . . . . . . . . . . . . . . 24mA
Analog Supply Voltage AVDD to AGND . . . . . . . . .. . . . . . . . . . +3.6V
Grounds, AGND TO DGND . . . . . . . . . . . . . . . . . .... . . -0.3V to +0.3V
Digital Input Voltages (DATA, CLK, SLEEP). . . . . ..... . . . DVDD+ 0.3V
Reference Input Voltage Range . . . . . . . . . . . . .. . . . . . AVDD+ 0.3V
Analog Output Current (IOUT) . . . . . . . . . . . . . . . . . . . . . . . . 24mA
ISL5829 Features
• Speed Grades . . . . . . . . . . . . . . . . 130M and 210+MSPS
• Low Power . . . . . 233mW with 20mA Output at 130MSPS
• Adjustable Full Scale Output Current . . . . . 2mA to 20mA
• Guaranteed Gain Matching < 0.14dB
• +3.3V Power Supply
• 3V LVCMOS Compatible Inputs
• Excellent Spurious Free Dynamic Range
(73dBc to Nyquist, fS= 130MSPS, fOUT= 10MHz)
• UMTS Adjacent Channel Power = 70dB at 19.2MHz
• EDGE/GSM SFDR = 90dBc at 11MHz in 20MHz Window
• Dual, 3.3V, Lower Power Replacement for AD9765
• Low Power . . . . . 233mW with 20mA Output at 130MSPS
• Adjustable Full Scale Output Current . . . . . 2mA to 20mA
• Guaranteed Gain Matching < 0.14dB
• +3.3V Power Supply
• 3V LVCMOS Compatible Inputs
• Excellent Spurious Free Dynamic Range
(73dBc to Nyquist, fS= 130MSPS, fOUT= 10MHz)
• UMTS Adjacent Channel Power = 70dB at 19.2MHz
• EDGE/GSM SFDR = 90dBc at 11MHz in 20MHz Window
• Dual, 3.3V, Lower Power Replacement for AD9765
ISL5829 Typical Application
• Cellular Infrastructure - Single or Multi-Carrier: IS-136,IS-95, GSM, EDGE, CDMA2000, WCDMA, TDS-CDMA
• BWA Infrastructure
• Quadrature Transmit with IF Range 080MHz
• Medical/Test Instrumentation and Equipment
• Wireless Communication Systems
• BWA Infrastructure
• Quadrature Transmit with IF Range 080MHz
• Medical/Test Instrumentation and Equipment
• Wireless Communication Systems

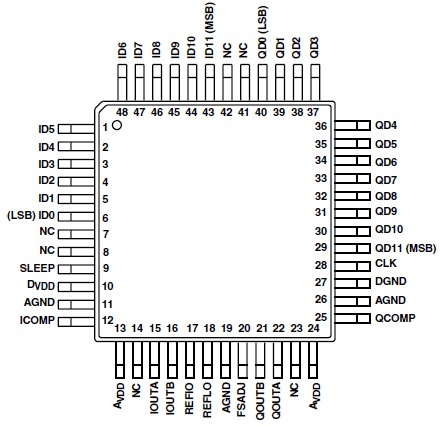

ISL5829 Connection Diagram
ISL5829
PDF/DataSheet Download
- Datasheet: ISL5829
- File Size: 652309 KB
- Manufacturer: INTERSIL
- Click here to Download
