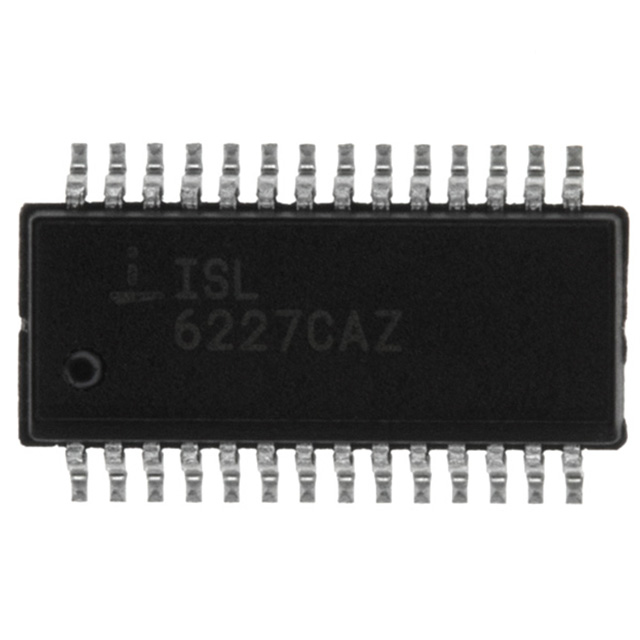

ISL6227CAZS2698 Product Image

ISL Series Datasheet download

Five Points

Part Number: ISL6227CAZS2698

Category: Integrated Circuits (ICs)

MFG: Intersil





Descriptions: IC CTRLR PWM DUAL BUCK 28-QSOP

Price Break

480

Unit Price

2.40000

Extended Price

1152.00

(All prices are in USD) Prices for reference only
Urgent Purchase

ISL6227CAZS2698 General Description

IC CTRLR PWM DUAL BUCK 28-QSOP

ISL6227CAZS2698 Parameters

Technical/Catalog InformationISL6227CAZS2698
VendorIntersil
CategoryIntegrated Circuits (ICs)
PWM TypeCurrent Mode
Number of Outputs2
Package / Case28-QSOP
PackagingTube
Duty Cycle87%
Voltage - Supply3.3 V ~ 24 V
Frequency-Max345kHz
BuckYes
BoostYes
FlybackNo
InvertingNo
DoublerNo
DividerNo
CukNo
IsolatedNo
Drawing Number*
Operating Temperature-10°C ~ 100°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ISL6227CAZS2698
ISL6227CAZS2698
