Purchase ISL6411, In-stock ISL6411 From SeekIC.
MFG:INTERSIL Package Cooled:QFN16 D/C:00+
- Table of contents:
ISL6411
-
Suppliers
DataSheet
General Description
ISL6411 Features
• Small DC-DC Converter Size
- Three LDOs and RESET Circuitry in a Low-Profile 4x4mm QFN Package
• High Output Current
- LDO1, 1.8V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mA
- LDO2, 2.84V. . . . . . . . . . . . . . . . . . . . . . . . . . . . 300mA
- LDO3, 2.84V. . . . . . . . . . . . . . . . . . . . . . . . . . . . 200mA
• Ultra-Low Dropout Voltage
- LDO2, 2.84V. . . . . . . . . . . . . . . 125mV (typ.) at 300mA
- LDO3, 2.84V. . . . . . . . . . . . . . . 100mV (typ.) at 200mA
• Ultra-Low Output Voltage Noise
- <30µVRMS (typ.) for LDO3 (VCO Supply)
• Stable with Smaller Ceramic Output Capacitors
• Voltage Sequencing for BBP/MAC and Analog Supplies
• Extensive Protection and Monitoring Features
- Over current protection
- Short circuit protection
- Thermal shutdown
- Reverse battery protection
- FAULT indicator
• Logic-Controlled Dual Shutdown Pins
• Integrated Microprocessor Reset Circuit
- Programmable Reset Delay
- Complimentary Reset Outputs
• Proven Reference Design for Total WLAN System Solution
• QFN Package Option
- Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Product Outline
- Near Chip-Scale Package Footprint Improves PCB Efficiency and Is Thinner in Profile
- Lead-Free Package Option Available ("Z" suffix)
- Three LDOs and RESET Circuitry in a Low-Profile 4x4mm QFN Package
• High Output Current
- LDO1, 1.8V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mA
- LDO2, 2.84V. . . . . . . . . . . . . . . . . . . . . . . . . . . . 300mA
- LDO3, 2.84V. . . . . . . . . . . . . . . . . . . . . . . . . . . . 200mA
• Ultra-Low Dropout Voltage
- LDO2, 2.84V. . . . . . . . . . . . . . . 125mV (typ.) at 300mA
- LDO3, 2.84V. . . . . . . . . . . . . . . 100mV (typ.) at 200mA
• Ultra-Low Output Voltage Noise
- <30µVRMS (typ.) for LDO3 (VCO Supply)
• Stable with Smaller Ceramic Output Capacitors
• Voltage Sequencing for BBP/MAC and Analog Supplies
• Extensive Protection and Monitoring Features
- Over current protection
- Short circuit protection
- Thermal shutdown
- Reverse battery protection
- FAULT indicator
• Logic-Controlled Dual Shutdown Pins
• Integrated Microprocessor Reset Circuit
- Programmable Reset Delay
- Complimentary Reset Outputs
• Proven Reference Design for Total WLAN System Solution
• QFN Package Option
- Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Product Outline
- Near Chip-Scale Package Footprint Improves PCB Efficiency and Is Thinner in Profile
- Lead-Free Package Option Available ("Z" suffix)
ISL6411 Typical Application
• PRISM® 3, PRISM GT™, and PRISM WWR Chipsets
• WLAN Cards
- PCMCIA, Cardbus32, MiniPCI Cards
- Compact Flash Cards
• Hand-Held Instruments
• WLAN Cards
- PCMCIA, Cardbus32, MiniPCI Cards
- Compact Flash Cards
• Hand-Held Instruments

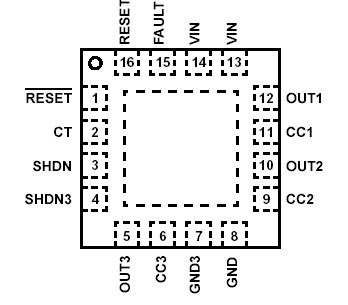

ISL6411 Connection Diagram
ISL6411
