Part Number: ISL837030
Description: Intersil's broadband wireless modem devices are fully integrated and support a wide range of modulatio...
- Table of contents:
ISL837030
-
Suppliers
DataSheet
General Description
ISL837030 General Description
Intersil's broadband wireless modem devices are fully integrated and support a wide range of modulation orders and symbol rates.Sophisticated coding, equalization,and symbol recovery techniques are employed to enable robust wireless link performance.
The complete modem Printed Circuit Board Assemblies (PCBAs) with standard hardware and software interfaces enable equipment manufacturers to rapidly integrate Intersil modem functionality into their system products.
The ISL837030 and ISL83740 Modem Reference Designs provide a flexible,high performance, economical solution for fixed wireless applications.The modem design provides an off-the-shelf solution for users interested in easily integrating a complete modem into their products.
The modem PCBA architecture implements a complete baseband transmit and receive function:
ISL837030 Features
•Programmablemodulation
Both:QPSK,8PSK,16QAM,32QAM
ISL83740only:64QAM,128QAM
•Flexibledatarates
ISL83740:upto238Mbps
ISL837030:upto160Mbps
•Programmablesymbolrates
•ReedSolomon(RS)encoding/decoding
•ConcatenatedcodingusingRSandPTCMinnercode
•FCCandETSIspectralmaskcompliance
•Powerfulequalization
Both:QPSK,8PSK,16QAM,32QAM
ISL83740only:64QAM,128QAM
•Flexibledatarates
ISL83740:upto238Mbps
ISL837030:upto160Mbps
•Programmablesymbolrates
•ReedSolomon(RS)encoding/decoding
•ConcatenatedcodingusingRSandPTCMinnercode
•FCCandETSIspectralmaskcompliance
•Powerfulequalization

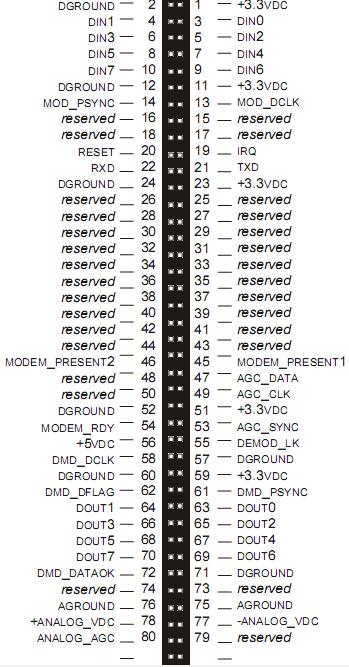

ISL837030 Connection Diagram
ISL837030KIT-xxx
