General Description
ISL97701 General Description
The ISL97701 represents a high efficiency boost converter with integrated boost FET, boost diode and input disconnect FET. With an input voltage of 2.3V to 5.5V the ISL97701 has an output capability of up to 50mA at 18V using integrated 500mA switches. Efficiencies are up to 87%.
The integrated protection FET is used to disconnect the boost inductor from the input supply whenever an output fault condition is detected, or when the device is disabled. This gives 0 output current in the disabled mode, compared to standard boost converters where current can still flow when the device is disabled.
The ISL97701 comes in the 10 Ld 3x3 DFN package and is specified for operation over the -40°C to +85°C temperature range.
ISL97701 Maximum Ratings
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 6V
VOUT to GND. . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . -0.3V to 31V
LX to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . VOUT + 1V
VDDOUT, NSYNC, FB, NEN
to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to VDD + 0.3V
Continuous Current in VDD, GND, VDDOUT, LX . . . . . . . . . 650mA
Continuous Current in NSYNC, FB, NEN . . . . . . . . . . . . . . . . 10mA
VOUT to GND. . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . -0.3V to 31V
LX to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . VOUT + 1V
VDDOUT, NSYNC, FB, NEN
to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to VDD + 0.3V
Continuous Current in VDD, GND, VDDOUT, LX . . . . . . . . . 650mA
Continuous Current in NSYNC, FB, NEN . . . . . . . . . . . . . . . . 10mA
ISL97701 Features
• Up to 87% efficiency
• 2.3V to 5.5V input
• Up to 28V output
• 50mA at 18V
• Integrated boost Schottky diode
• Input voltage disconnect switch
• Synchronization input
• Chip enable
• 10 Ld 3x3 DFN package
• Pb-free (RoHS compliant)
• 2.3V to 5.5V input
• Up to 28V output
• 50mA at 18V
• Integrated boost Schottky diode
• Input voltage disconnect switch
• Synchronization input
• Chip enable
• 10 Ld 3x3 DFN package
• Pb-free (RoHS compliant)
ISL97701 Typical Application
• OLED display power
• LED display power
• Adjustable power supplies
• LED display power
• Adjustable power supplies

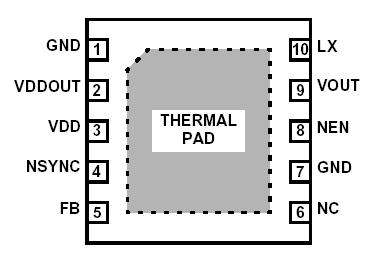

ISL97701 Connection Diagram
ISL97701
PDF/DataSheet Download
- Datasheet: ISL97701
- File Size: 194356 KB
- Manufacturer: INTERSIL [Intersil Corporation]
- Click here to Download
- ·ISL12026
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12026IBZ
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12026IVZ
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12027
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 481227 KB
- ·ISL12027IB27AZ
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12027IB27AZ-T
- INTERSIL [Intersil Corporation]
- Real Time Clock/Calendar with EEPROM
- 424887 KB
- ·ISL12027IB27Z
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12027IB27Z-T
- INTERSIL [Intersil Corporation]
- Real Time Clock/Calendar with EEPROM
- 424887 KB
ISL97701 Relative Products

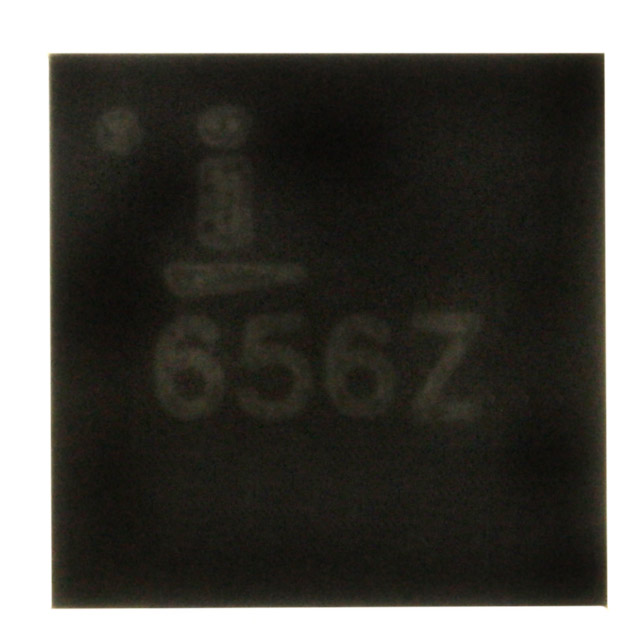

ISL97656IRTZ-TK
