The ISP1181A is a Universal Serial Bus (USB) peripheral controller that complies
with Universal Serial Bus Specification Rev. 2.0, supporting data transfer at full-speed (12 Mbit/s). It provides full-speed USB communication capacity to microcontroller or microprocessor-based systems. The ISP1181A communicates with the system's microcontroller or microprocessor through a high-speed general-purpose parallel interface.
The ISP1181A supports fully autonomous, multi-configurable Direct Memory Access (DMA) operation.
The modular approach to implementing a USB peripheral controller allows the designer to select the optimum system microcontroller from the wide variety available. The ability to reuse existing architecture and firmware investments shortens development time, eliminates risks and reduces costs. The result is fast and efficient development of the most cost-effective USB peripheral solution.
The ISP1181A is ideally suited for application in many personal computer peripherals such as printers, communication devices, scanners, external mass storage (Zip® drive) devices and digital still cameras. It offers an immediate cost reduction for applications that currently use SCSI implementations.
ISP1181A Maximum Ratings
| Symbol | Parameter | Conditions | Min | Max | Unit |
| VCC | supply voltage | -0.5 | +6.0 | V | |
| VI | input voltage | -0.5 | VCC+0.5 | V | |
| Ilatchup | latch-up current | VI < 0 or VI > VCC | - | 500 | mA |
| Vesd | electrostatic discharge voltage | ILI < 15 A [1] | - | ±2000 | V |
| Tstg | storage temperature | -60 | +150 | ||
| Ptot | total power dissipation | VCC = 5.5 V | - | 165 | mW |
ISP1181A Features
` Complies with Universal Serial Bus Specification Rev. 2.0 and most Device Class specifications
` Supports data transfer at full-speed (12 Mbit/s)
` High performance USB peripheral controller with integrated Serial Interface Engine (SIE), FIFO memory, transceiver and 3.3 V voltage regulator
` High speed (11.1 Mbyte/s or 90 ns read/write cycle) parallel interface
` Fully autonomous and multi-configuration DMA operation
` Up to 14 programmable USB endpoints with 2 fixed control IN/OUT endpoints
` Integrated physical 2462 bytes of multi-configuration FIFO memory
` Endpoints with double buffering to increase throughput and ease real-time data transfer
` Seamless interface with most microcontrollers/microprocessors
` Bus-powered capability with low power consumption and low 'suspend' current
` 6 MHz crystal oscillator input with integrated PLL for low EMI
` Controllable LazyClock (100 kHz ± 50 %) output during 'suspend'
` Software controlled connection to the USB bus (SoftConnect™)
` Good USB connection indicator that blinks with traffic (GoodLink™)
` Clock output with programmable frequency (up to 48 MHz)
` Complies with the ACPI™, OnNow™ and USB power management requirements
` Internal power-on and low-voltage reset circuit, with possibility of a software reset
` Operation over the extended USB bus voltage range (4.0 V to 5.5 V) with 5 V tolerant I/O pads
` Operating temperature range -40 °C to +85 °C
` Full-scan design with high fault coverage
` Available in TSSOP48 and HVQFN48 packages.
` Supports data transfer at full-speed (12 Mbit/s)
` High performance USB peripheral controller with integrated Serial Interface Engine (SIE), FIFO memory, transceiver and 3.3 V voltage regulator
` High speed (11.1 Mbyte/s or 90 ns read/write cycle) parallel interface
` Fully autonomous and multi-configuration DMA operation
` Up to 14 programmable USB endpoints with 2 fixed control IN/OUT endpoints
` Integrated physical 2462 bytes of multi-configuration FIFO memory
` Endpoints with double buffering to increase throughput and ease real-time data transfer
` Seamless interface with most microcontrollers/microprocessors
` Bus-powered capability with low power consumption and low 'suspend' current
` 6 MHz crystal oscillator input with integrated PLL for low EMI
` Controllable LazyClock (100 kHz ± 50 %) output during 'suspend'
` Software controlled connection to the USB bus (SoftConnect™)
` Good USB connection indicator that blinks with traffic (GoodLink™)
` Clock output with programmable frequency (up to 48 MHz)
` Complies with the ACPI™, OnNow™ and USB power management requirements
` Internal power-on and low-voltage reset circuit, with possibility of a software reset
` Operation over the extended USB bus voltage range (4.0 V to 5.5 V) with 5 V tolerant I/O pads
` Operating temperature range -40 °C to +85 °C
` Full-scan design with high fault coverage
` Available in TSSOP48 and HVQFN48 packages.
ISP1181A Typical Application
· Personal Digital Assistant (PDA)
· Digital camera
· Communication device, for example:
· Router
· Modem
· Mass storage device, for example:
· Zip drive
· Printer
· Scanner.
· Digital camera
· Communication device, for example:
· Router
· Modem
· Mass storage device, for example:
· Zip drive
· Printer
· Scanner.

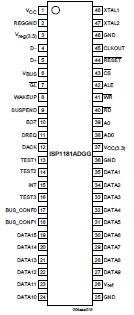

ISP1181A Connection Diagram
