General Description
ISP1583 General Description
The ISP1583 is a cost-optimized and feature-optimized Hi-Speed Universal Serial Bus (USB) peripheral controller. It fully complies with Universal Serial Bus Specification Rev. 2.0, supporting data transfer at high-speed (480 Mbit/s) andf ull-speed (12 Mbit/s).
The ISP1583 provides high-speed USB communication capacity to systems based on microcontrollers or microprocessors. It communicates with a microcontroller or microprocessor of a system through a high-speed general-purpose parallel interface.
The ISP1583 supports automatic detection of Hi-Speed USB system operation. Original USB fall-back mode allows the device to remain operational under full-speed conditions. It is designed as a generic USB peripheral controller so that it can fit into all existing device classes, such as imaging class, mass storage devices, communication devices, printing devices and human interface devices.
The ISP1583 is a low-voltage device, which supports I/O pad voltages from 1.65 V to 3.6 V.
The internal generic Direct Memory Access (DMA) block allows easy integration into data streaming applications. In addition, the various configurations of the DMA block are tailored for mass storage applications.
The modular approach to implementing a USB peripheral controller allows the designer to select the optimum system microcontroller from the wide variety available. The ability to reuse existing architecture and firmware investments shortens the development time, eliminates risk and reduces cost. The result is fast and efficient development of the most cost-effective USB peripheral solution.
The ISP1583 is ideally suited for many types of peripherals, such as: printers; scanners; magneto-optical, compact disc, digital video disc and Zip® drives; digital still cameras; USB-to-Ethernet links; cable and DSL modems. The low power consumption during suspend mode allows easy design of equipment that is compliant to the ACPI™, OnNow™ and USB power management requirements.
The ISP1583 also incorporates features such as SoftConnect™, a reduced frequency crystal oscillator, and integrated termination resistors. These features allow significant cost savings in system design and easy implementation of advanced USB functionality into PC peripherals.
ISP1583 Maximum Ratings
| Symbol | Parameter | Conditions | Min | Max | Unit |
| VCC(3V) | supply voltage | -0.5 | +4.6 | V | |
| VCC(I/O) | I/O pad supply voltage | -0.5 | +4.6 | V | |
| VI | input voltage | [1] | -0.5 | VCC(3V)+0.5 | V |
| Ilu | latch-up current | VI < 0 or VI >VCC(3V) | - | 100 | mA |
| Vesd | electrostatic discharge voltage | ILI < 1 A | |||
| pins DP, DM, VBUS, AGND and DGND |
-4000 | +4000 | V | ||
| other pins | -2000 | +2000 | |||
| Tstg | storage temperature | -40 | +125 |
ISP1583 Features
· Complies fully with:
· Universal Serial Bus Specification Rev. 2.0
· Most Device Class specifications
· ACPI™, OnNow™ and USB power management requirements
· Supports data transfer at high-speed (480 Mbit/s) and full-speed (12 Mbit/s)
· Direct interface to ATA/ATAPI peripherals; applicable only in split bus mode
· High performance USB peripheral controller with integrated Serial Interface
Engine (SIE), Parallel Interface Engine (PIE), FIFO memory and data transceiver
· Automatic Hi-Speed USB mode detection and Original USB fall-back mode
· Supports sharing mode
· Supports I/O voltage range of 1.65 V to 3.6 V
· Supports VBUS sensing
· High-speed DMA interface
· Configurable direct access data path from the microprocessor to an ATA device
· Fully autonomous and multi configuration DMA operation
· 7 IN endpoints, 7 OUT endpoints and a fixed control IN/OUT endpoint
· Integrated physical 8 kbytes of multi configuration FIFO memory
· Endpoints with double buffering to increase throughput and ease real-time data transfer
· Bus-independent interface with most microcontrollers and microprocessors
· 12 MHz crystal oscillator with integrated PLL for low EMI
· Software-controlled connection to the USB bus (SoftConnect™)
· Low-power consumption in operation and power-down modes; suitable for use in bus-powered USB devices
· Supports Session Request Protocol (SRP) that complies with On-The-Go
Supplement to the USB Specification Rev. 1.0a
· Internal power-on and low-voltage reset circuits; also supports software reset
· Operation over the extended USB bus voltage range (DP, DM and VBUS)
· 5 V tolerant I/O pads at 3.3 V
· Operating temperature range from -40 °C to +85 °C
· Available in HVQFN64 halogen-free and lead-free package.
· Universal Serial Bus Specification Rev. 2.0
· Most Device Class specifications
· ACPI™, OnNow™ and USB power management requirements
· Supports data transfer at high-speed (480 Mbit/s) and full-speed (12 Mbit/s)
· Direct interface to ATA/ATAPI peripherals; applicable only in split bus mode
· High performance USB peripheral controller with integrated Serial Interface
Engine (SIE), Parallel Interface Engine (PIE), FIFO memory and data transceiver
· Automatic Hi-Speed USB mode detection and Original USB fall-back mode
· Supports sharing mode
· Supports I/O voltage range of 1.65 V to 3.6 V
· Supports VBUS sensing
· High-speed DMA interface
· Configurable direct access data path from the microprocessor to an ATA device
· Fully autonomous and multi configuration DMA operation
· 7 IN endpoints, 7 OUT endpoints and a fixed control IN/OUT endpoint
· Integrated physical 8 kbytes of multi configuration FIFO memory
· Endpoints with double buffering to increase throughput and ease real-time data transfer
· Bus-independent interface with most microcontrollers and microprocessors
· 12 MHz crystal oscillator with integrated PLL for low EMI
· Software-controlled connection to the USB bus (SoftConnect™)
· Low-power consumption in operation and power-down modes; suitable for use in bus-powered USB devices
· Supports Session Request Protocol (SRP) that complies with On-The-Go
Supplement to the USB Specification Rev. 1.0a
· Internal power-on and low-voltage reset circuits; also supports software reset
· Operation over the extended USB bus voltage range (DP, DM and VBUS)
· 5 V tolerant I/O pads at 3.3 V
· Operating temperature range from -40 °C to +85 °C
· Available in HVQFN64 halogen-free and lead-free package.
ISP1583 Typical Application
· Personal digital assistant
· Mass storage device, for example: Zip, Magneto-Optical (MO), CD and DVD drives
· Digital video camera
· Digital still camera
· 3G mobile phone
· MP3 player
· Communication device, for example: router and modem
· Printer
· Mass storage device, for example: Zip, Magneto-Optical (MO), CD and DVD drives
· Digital video camera
· Digital still camera
· 3G mobile phone
· MP3 player
· Communication device, for example: router and modem
· Printer

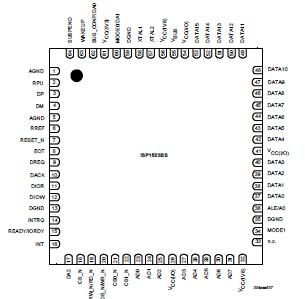

ISP1583 Connection Diagram
ISP1583
PDF/DataSheet Download
- Datasheet: ISP1583
- File Size: 430907 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
- ·ISP1032E
- LATTICE [Lattice Semiconductor]
- High-Density Programmable Logic
- 309108 KB
- ·ISP1048E
- LATTICE [Lattice Semiconductor]
- High-Density Programmable Logic
- 162053 KB
- ·ISP1102
- PHILIPS [Philips Semiconductors]
- Advanced Universal Serial Bus transceiver
- 546721 KB
- ·ISP1102BS
- PHILIPS [Philips Semiconductors]
- Advanced Universal Serial Bus transceiver
- 546721 KB
- ·ISP1102W
- PHILIPS [Philips Semiconductors]
- Advanced Universal Serial Bus transceiver
- 546721 KB
- ·ISP1103
- PHILIPS [Philips Semiconductors]
- Universal Serial Bus transceiver
- 495980 KB
- ·ISP1103D
- PHILIPS [Philips Semiconductors]
- Universal Serial Bus transceiver
- 495980 KB
- ·ISP1103DB
- PHILIPS [Philips Semiconductors]
- Universal Serial Bus transceiver
- 495980 KB
ISP1583 Relative Products

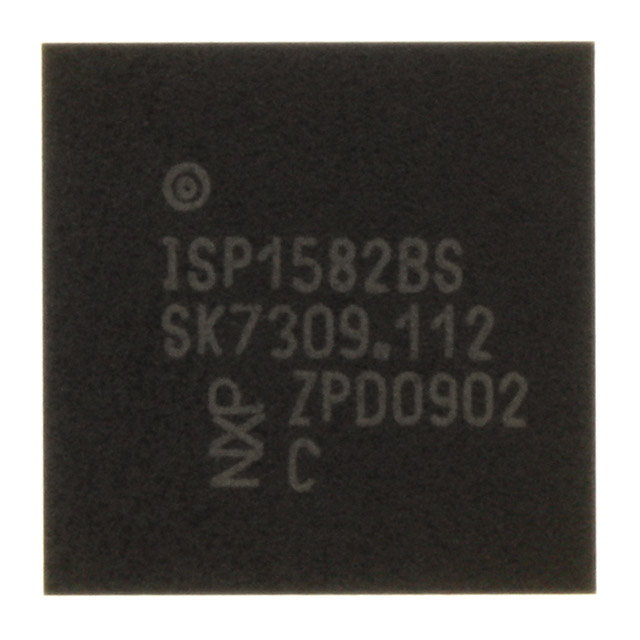

ISP1582BSUM
