ITA18B1

Channels : 4 Channels
Minimum Operating Temperature : - 55 C
Maximum Operating Temperature : + 125 C
Polarity : Bidirectional
Packaging : Tube
Package / Case : SO-8
Operating Voltage : 15 V
Breakdown Voltage : 18 V
Series : ITAxxB1
Clamping Voltage : 25 V
Capacitance : 350 pF


Features:

` HIGH SURGE CAPABILITY TRANSIL ARRAY
  IPP = 40 A (8/20s)
` PEAK PULSE POWER : 300 W (8/20s)
` UPTO5 BIDIRECTIONAL TRANSIL FUNCTIONS
` LOW CLAMPING FACTOR (V_CL / V_BR) AT
  HIGH CURRENT LEVEL
` LOW LEAKAGE CURRENT
` ESD PROTECTION UP TO 15kV


Application

Differential data transmission lines protection :
- RS-232
- RS-423
- RS-422
- RS-485

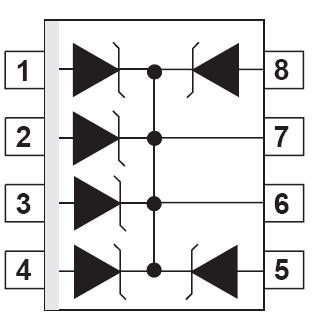

Pinout




Specifications

Symbol	Parameter		Value	Unit
PPP	Peak pulse power dissipation (8/20s) (see note 1)	Tj initial = Tamb	300	W
IPP	Peak pulse current (8/20s) (see note 1)	Tj initial = Tamb	40	A
I2t	Wire I2t value (see note 1)		0.6	A2s
Tstg Tj	Storage temperature range Maximum operating junction temperature		- 55 to + 150 125	°C °C
TL	Maximum lead temperature for soldering during 10s		260	°C

Description

Transil diode arrays ITA18B1 provide high overvoltage protection by clamping action. Their instantaneous ITA18B1 response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC's.

The ITA series ITA18B1 allies high surge capability against energetic pulses with high voltage performance against ESD.


Parameters:

Technical/Catalog Information	ITA18B1
Vendor	STMicroelectronics
Category	Circuit Protection
Package / Case	8-SOIC (3.9mm Width)
Packaging	Tube
Polarization	5 Channel Array - Bidirectional
Power (Watts)	300W
Voltage - Reverse Standoff (Typ)	15V
Voltage - Breakdown	18V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ITA18B1 ITA18B1
