Product Details

Description



Features:

·World's smallest 2.5 mm x 2.5 mm CDMA
·receiver chip
·Operating frequency:
        CDMA Cellular : 869 ~ 894 MHz
        CDMA 450 : 460 ~ 470 MHz
·High linearity and high gain
·Two step LNA gain control
·16 dB Gain, 1.2 dB NF, 9.5 dBm IIP3 LNA
·Adjustable Gain, NF, IIP3 of mixer using
·an external inductor
·All pins are ESD-protected
·Tiny 12-pin LPCC package  (2.5mm × 2.5mm × 0.9mm)

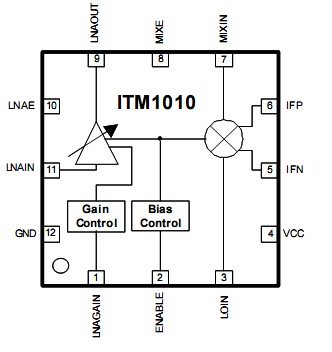

Pinout

Connection Diagram




Specifications

Parameter Symbol Min Max Unit
Supply Voltage VCC -0.5 3.6 V
Digital Input Voltage to Ground VD -0.3 Vcc+0.3 V
Input Power Level PImax   6 dBm
Storage Temperature TS -40 150
Junction Temperature TJ   150
Lead Temperature (Soldering, 10sec) TL   240



Description

The ITM1010 is an integrated receiver front-end IC for 800 MHz Cellular CDMA and 450MHz CDMA450 mobile phones. The device has an LNA and a down-converter on a single die. Its low noise amplifier and mixer have high linearity and high gain. The LNA has two-step gain control scheme, increasing dynamic range while saving current. Gain, noise figure, and linearity of the mixer can be easily adjusted using an external inductor.

The ITM1010 is fabricated on an advanced SiGe BiCMOS process which facilitates low-noise, low-power, high-frequency analog circuits along with CMOS control function. The ITM1010 uses tiny 12-pin 2.5mm  x 2.5mm Leadless Plastic Chip Carrier (LPCC) package, which is the smallest CDMA receiver chip in the world.
