General Description
IW4027B General Description
The IW4027B is a Dual JK Flip-Flop which is edge-triggered and features independent Set, Reset, and Clock inputs. Data is accepted when the Clock is LOW and transferred to the output on the positivegoing edge of the Clock. The active HIGH asynchronous Reset and Set are independent and override the J, K, or Clock inputs. The outputs are buffered for best system performance.
IW4027B Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VCC | DC Supply Voltage (Referenced to GND) | -0.5 to +20 | V |
| VIN | DC Input Voltage (Referenced to GND) | -0.5 to VCC +0.5 | V |
| IIN | DC Input Current, per Pin | ±10 | mA |
| PD | Power Dissipation in Still Air, Plastic DIP, SOIC Package |
500** | mW |
| Tstg | Storage Temperature | -65 to +150 | °C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 | °C |
Functional operation should be restricted to the Recommended Operating Conditions.
**Derating: - Plastic DIP from -55 to +100°C
- SOIC Package from -55 to +65°C
- Plastic DIP: - 10 mW/°C from +100 to +125°C
- SOIC Package: : - 7 mW/°C from +65 to +125°C
IW4027B Features
· Operating Voltage Range: 3.0 to 18 V
· Maximum input current of 1 mA at 18 V over full packagetemperature range; 100 nA at 18 V and 25°C
· Noise margin (over full package temperature range):
1.0 V min @ 5.0 V supply
2.0 V min @ 10.0 V supply
2.5 V min @ 15.0 V supply
· Maximum input current of 1 mA at 18 V over full packagetemperature range; 100 nA at 18 V and 25°C
· Noise margin (over full package temperature range):
1.0 V min @ 5.0 V supply
2.0 V min @ 10.0 V supply
2.5 V min @ 15.0 V supply

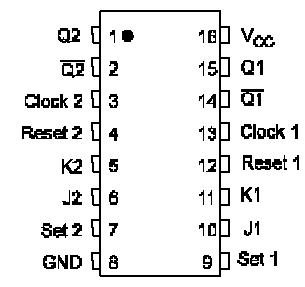

IW4027B Connection Diagram
IW4027B
