IXBT6N170

IGBT Transistors 12 Amps 1700V 3.6 Rds

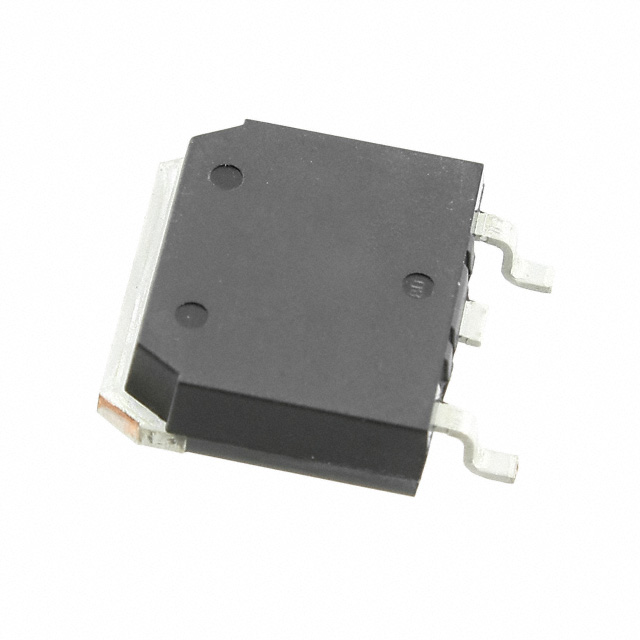

product image

IXBT6N170 Picture
See larger image
SeekIC No. : 00142940 Detail

IXBT6N170: IGBT Transistors 12 Amps 1700V 3.6 Rds

IXBT6N170 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IXBT6N170
Mfg:
Ixys
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Single Collector- Emitter Voltage VCEO Max : 1700 V
Collector-Emitter Saturation Voltage : 2.3 V Maximum Gate Emitter Voltage : 20 V
Maximum Operating Temperature : + 150 C Package / Case : TO-268-3
Packaging : Tube

Description

Continuous Collector Current at 25 C :
Gate-Emitter Leakage Current :
Power Dissipation :
Maximum Gate Emitter Voltage : 20 V
Maximum Operating Temperature : + 150 C
Packaging : Tube
Configuration : Single
Collector-Emitter Saturation Voltage : 2.3 V
Collector- Emitter Voltage VCEO Max : 1700 V
Package / Case : TO-268-3


Features:

High Blocking Voltage
JEDEC TO-268 surface and
JEDEC TO-247 AD
Low conduction losses
High current handling capability
MOS Gate turn-on
- drive simplicity
Molding epoxies meet UL 94 V-0
flammability classification


Application

AC motor speed control
Uninterruptible power supplies (UPS)
Switched-mode and resonant-mode power supplies
Capacitor discharge circuits


Specifications

Symbol Test Conditions Maximum Ratings
VCES
VCGR		 TJ = 25 to 150
TJ = 25 to 150; RGS = 1M
1700
1700
V
V
VGES
VGEM		 Continuous
Transient
±20
±30
V
V
IC25
IC90
ICM		 TC = 25
TC = 90
TC = 25, 1 ms
12
6
24
A
A
A
SSOA
(RBSOA)		 VGE = 15 V, TVJ = 125, RG = 33
Clamped inductive load
ICM = 16
V = 1350
mJ
J
PC TC = 25
75
W
TJ
TJM
Tstg
-55 ... +150
            150
-55 ... +150



Maximum Lead temperature for soldering
1.6 mm (0.062 in.) from case for 10 s
Maximum Tab temperature for soldering SMD devices for 10 s
300
260

Md Mounting torque (M3)
1.13/10Nm/lb.in.
Weight TO-247 AD
TO-268
6
4
g
g



Parameters:

Technical/Catalog InformationIXBT6N170
VendorIXYS
CategoryDiscrete Semiconductor Products
Input TypeStandard
Voltage - Collector Emitter Breakdown (Max)1700V
Current - Collector (Ic) (Max)12A
Vce(on) (Max) @ Vge, Ic3V @ 15V, 6A
Power - Max75W
Mounting TypeSurface Mount
Package / CaseTO-268
Packaging*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IXBT6N170
IXBT6N170
