PinoutSpecificationsCase Temperature TC Under Bias ...0°C to +100°CStorage Temperature ........-65°C to +150°CVoltage on Any Pin with Respect to Ground .......-0.5 to VCC+0.5Power Dissipation.................0.8WDescriptionIn the following signal descriptions, the Intel387 SX Math CoProcessor pins...
Intel387TM: PinoutSpecificationsCase Temperature TC Under Bias ...0°C to +100°CStorage Temperature ........-65°C to +150°CVoltage on Any Pin with Respect to Ground .......-0.5 to VCC+0.5Power Dissipation..........
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: SpecificationsDescriptionThe Intel386 DX has the following features including Object Cod...

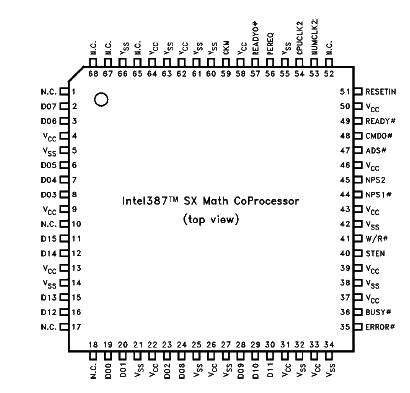

In the following signal descriptions, the Intel387 SX Math CoProcessor pins are grouped by function as shown by Table 4-1. Table 4-1 lists every pin by its identifier, gives a brief description and lists some of the characteristics of the Intel387TM (Refer to Figure 1-1 and Table 1-1 for pin configuration).
All output signals of the Intel387TM can be tri-stated by driving STEN inactive. The output buffers of the bi-directional data pins D15±D0 are also tri-state; they only leave the floating state during read cycles when the Math Co- Processor is selected.
