Product Details

Description



Features:

· Low Power and Low Voltage Operation with a Sleep Mode
· Integrated CDMA and FM Filter with Wide Dynamic Range
· Low Inband Gain Ripple Performance and Good I/Q Matching for the Filter




Pinout

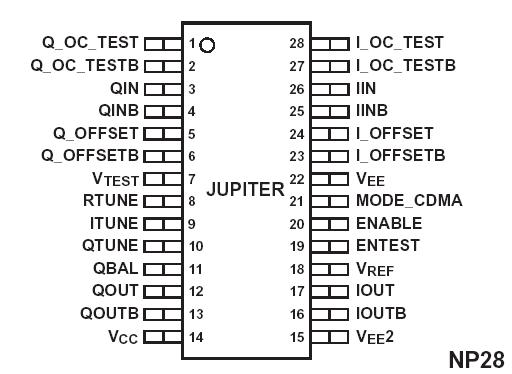

Connection Diagram




Specifications

Supply voltage, VCC MAX. . . . . . . . . . . . . . . .20·7V to 15·3V
Operating temperature, TOP (at pins). . . . . .230°C to170°C
Storage temperature, TSTG (ambient). . . . .240°C to 1150°C
Junction temperature. . . . . . . . . . . . . . . . . 230°C to 1125°C
CMOS input logic high, VIH. . . . . . . . . . . . . .VCC10·6V (Max.)
CMOS input logic low, VIL. . . . . . . . . . . . . . . . . . 20·6V (Min.)
Maximum input voltage at all pins. . 20·6V to VCC MAX10·6V




Description

The JUPITER circuit is designed for use in dual band and dual mode mobile phones (CDMA/AMPS) and meets the requirements for IS-95 when used with other chips from Mitel that form the Planet chipset. JUPITER is an active filter incorporating circuits for receiving both CDMA and FM (AMPS).
