K3P7V(U)1000B-YC
-
Suppliers
DataSheet
General Description
K3P7V(U)1000B-YC General Description
The K3P7V(U)1000B-YC is a fully static mask programmable ROM fabricated using silicon gate CMOS process technology, and is organized either as 8,388,608 x 8 bit(byte mode) or as 4,194,304 x 16 bit(word mode) depending on BHE voltage level.(See mode selection table) This device includes page read mode function, page read mode allows 8 words (or 16 bytes) of data to read fast in the same page, CE and A3 ~ A21 should not be changed.
This device operates with 3.0V or 3.3V power supply, and all inputs and outputs are TTL compatible.
Because of its asynchronous operation, it requires no external clock assuring extremely easy operation.
It is suitable for use in program memory of microprocessor, and data memory, character generator.
The K3P7V(U)1000B-YC is packaged in a 48-TSOP1.
K3P7V(U)1000B-YC Maximum Ratings
| Item | Symbol | Rating | Unit |
| Voltage on Any Pin Relative to VSS | VIN | -0.3 to +4.5 | V |
| Temperature Under Bias | TBIAS | -10 to +85 | |
| Storage Temperature | TSTG | -55 to +150 |
NOTE : Permanent device damage may occur if "ABSOLUTE MAXIMUM RATINGS" are exceeded. Functional operation should be restricted to the conditions as detailed in the operational sections of this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
K3P7V(U)1000B-YC Features
· Switchable organization
8,388,608 x 8(byte mode)
4,194,304 x 16(word mode)
· Fast access time
Random Access Time/Page Access Time
3.3V Operation : 100/30ns(Max.)@CL=50pF,
120/40ns(Max.)@CL=100pF
3.0V Operation : 120/40ns(Max.)@CL=100pF
8 Words / 16 Bytes page access
· Supply voltage : single +3.0V/ single +3.3V
· Current consumption
Operating : 60mA(Max.)
Standby : 50mA(Max.)
· Fully static operation
· All inputs and outputs TTL compatible
· Three state outputs
· Package
K3P7V(U)1000B-YC : 48-TSOP1-1218
8,388,608 x 8(byte mode)
4,194,304 x 16(word mode)
· Fast access time
Random Access Time/Page Access Time
3.3V Operation : 100/30ns(Max.)@CL=50pF,
120/40ns(Max.)@CL=100pF
3.0V Operation : 120/40ns(Max.)@CL=100pF
8 Words / 16 Bytes page access
· Supply voltage : single +3.0V/ single +3.3V
· Current consumption
Operating : 60mA(Max.)
Standby : 50mA(Max.)
· Fully static operation
· All inputs and outputs TTL compatible
· Three state outputs
· Package
K3P7V(U)1000B-YC : 48-TSOP1-1218

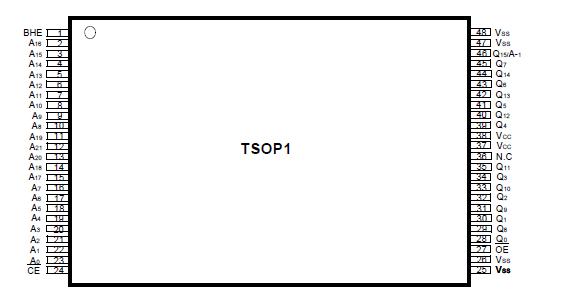

K3P7V(U)1000B-YC Connection Diagram
K3P6C2000B-SC
PDF/DataSheet Download
- Datasheet: K3P6C2000B-SC
- File Size: 64890 KB
- Manufacturer: SAMSUNG [Samsung semiconductor]
- Click here to Download
- ·K3P7V1000
- SAMSUNG [Samsung semiconductor]
- 64M-Bit (8Mx8 /4Mx16) CMOS MASK ROM
- 64422 KB
- ·K3P7V1000B-YC
- SAMSUNG [Samsung semiconductor]
- 64M-Bit (8Mx8 /4Mx16) CMOS MASK ROM
- 64422 KB
- ·K3P7VU1000B-YC
- SAMSUNG [Samsung semiconductor]
- 64M-Bit (8Mx8 /4Mx16) CMOS MASK ROM
- 64422 KB
