K4S511632C

Features: • JEDEC standard 3.3V power supply• LVTTL compatible with multiplexed address• Four banks operation• MRS cycle with address key programs-. CAS latency (2 & 3)-. Burst length (1, 2, 4, 8 & Full page)-. Burst type (Sequential & Interleave)• All inp...

product image

K4S511632C Picture
See larger image
SeekIC No. : 004382915 Detail

K4S511632C: Features: • JEDEC standard 3.3V power supply• LVTTL compatible with multiplexed address• Four banks operation• MRS cycle with address key programs-. CAS latency (2 & 3)-....

K4S511632C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
K4S511632C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• JEDEC standard 3.3V power supply
• LVTTL compatible with multiplexed address
• Four banks operation
• MRS cycle with address key programs
-. CAS latency (2 & 3)
-. Burst length (1, 2, 4, 8 & Full page)
-. Burst type (Sequential & Interleave)
• All inputs are sampled at the positive going edge of the system clock.
• Burst read single-bit write operation
• DQM for masking
• Auto & self refresh
• 64ms refresh period (8K Cycle)


Pinout

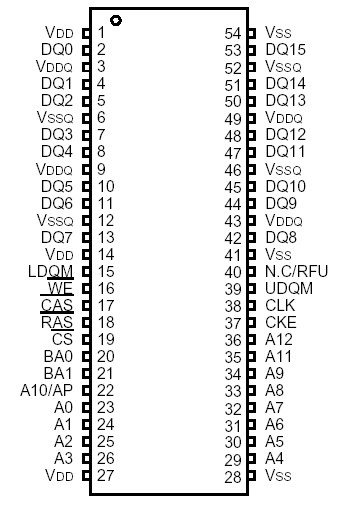

Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to Vss VIN, VOUT -1.0 ~ 4.6 V
Voltage on VDD supply relative to Vss VDD, VDDQ -1.0 ~ 4.6 V
Storage temperature TSTG -55 ~ +150
Power dissipation PD 2 W
Short circuit current IOS 50 mA



Description

The K4S511632C is 536,870,912 bits synchronous high data rate Dynamic RAM organized as 4 x 8,392,608words by 16bits, fabricated with SAMSUNG's high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable burst length and programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
