Purchase K4S560432E-NC, In-stock K4S560432E-NC From SeekIC.
- Table of contents:
K4S560432E-NC
-
Suppliers
DataSheet
General Description
K4S560432E-NC Maximum Ratings
Parameter |
Symbol |
Value |
Unit |
| Voltage on any pin relative to VSS | VIN, VOUT |
-1.0 ~ 4.6 |
V |
| Voltage on VDD supply relative to Vss | VDD, VDDQ |
-1.0 ~ 4.6 |
V |
| Storage temperature | TSTG |
-55 ~ +150 |
|
| Power dissipation | PD |
1 |
W |
| Short circuit current | IOS |
50 |
mA |
K4S560432E-NC Features
• JEDEC standard 3.3V power supply
• LVTTL compatible with multiplexed address
• Four banks operation
• MRS cycle with address key programs
-. CAS latency (2 & 3)
-. Burst length (1, 2, 4, 8 & Full page)
-. Burst type (Sequential & Interleave)
• All inputs are sampled at the positive going edge of the system clock.
• Burst read single-bit write operation
• DQM (x4,x8)
• Auto & self refresh
• 64ms refresh period (8K Cycle)
• LVTTL compatible with multiplexed address
• Four banks operation
• MRS cycle with address key programs
-. CAS latency (2 & 3)
-. Burst length (1, 2, 4, 8 & Full page)
-. Burst type (Sequential & Interleave)
• All inputs are sampled at the positive going edge of the system clock.
• Burst read single-bit write operation
• DQM (x4,x8)
• Auto & self refresh
• 64ms refresh period (8K Cycle)

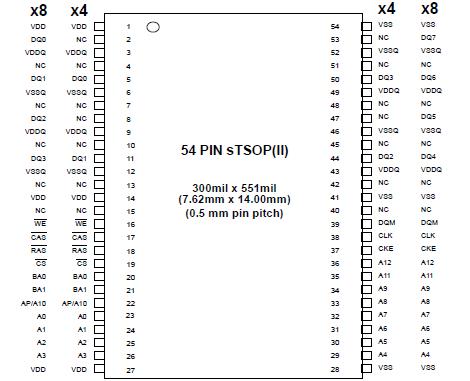

K4S560432E-NC Connection Diagram
K4S560432E-NC
PDF/DataSheet Download
- Datasheet: K4S560432E-NC
- File Size: 187187 KB
- Manufacturer: SAMSUNG [Samsung semiconductor]
- Click here to Download
