Part Number: K4S561632D
Description: The K4S561632D is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 x 4,196,304 w...
- Table of contents:
K4S561632D
-
Suppliers
DataSheet
General Description
K4S561632D General Description
The K4S561632D is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 x 4,196,304 words by 16 bits, fabri-cated with SAMSUNG's high performance CMOS technology. Syn-chronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle.Range of operating frequencies, programmable burst length and programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system appli-cations.
K4S561632D Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Voltage on any pin relative to VSS | VIN, VOUT | -1.0 ~ 4.6 | V |
| Voltage on VDD & VDDQ supply relative to VSS | VDD, VDDQ | -1.0 ~ 4.6 | V |
| Storage temperature | TSTG | -55 ~ +150 | |
| Power dissipation | PD | 1 | W |
| Short circuit current | IOS | 50 | mA |
K4S561632D Features
JEDEC standard 3.3V power supply
LVTTL compatible with multiplexed address
Four banks operation
MRS cycle with address key programs
-. CAS latency (2 & 3)
-. Burst length (1, 2, 4, 8 & Full page)
-. Burst type (Sequential & Interleave)
All inputs are sampled at the positive going edge of the system clock.
Burst read single-bit write operation
DQM for masking
Auto & self refresh
64ms refresh period (8K Cycle)

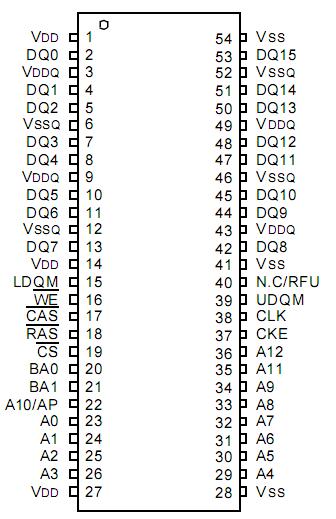

K4S561632D Connection Diagram
