Product Details

Description

Features:

• Process Technology: Full CMOS
• Organization: 256Kx8
• Power Supply Voltage: 2.3~2.7V
• Low Data Retention Voltage: 1.5V(Min)
• Three State Outputs
• Package Type: 32-TSOP1-0813.4F

Pinout

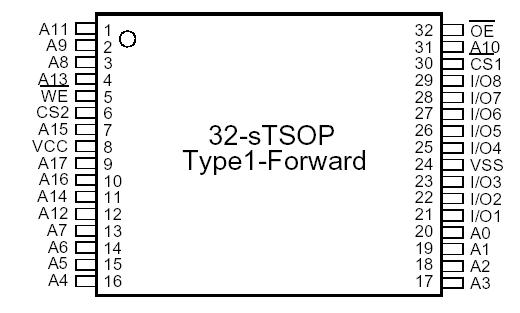

Connection Diagram

Specifications

Item	Symbol	Ratings	Unit
Voltage on any pin relative to Vss	V_IN,V_OUT	-0.2 to V_CC+0.3V	V
Voltage on Vcc supply relative to Vss	V_CC	-0.2 to 3.0	V
Power Dissipation	P_D	1.0	W
Storage temperature	T_STG	-65 to 150	°C
Operating Temperature	T_A	-40 to 85	°C

1. Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. Functional operation should be restricted to recommended operating condition. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Description

The K6F2008S2E families are fabricated by SAMSUNG's advanced Full CMOS process technology. The families support Various operating temperature ranges and have various package types for user flexibility of system design. The families also supports low data retention voltage for battery back-up operation with low data retention current.
