Purchase KA3016D, In-stock KA3016D From SeekIC.
MFG:FAIRCHILD D/C:00+
Part Number: KA3016D
MFG: FAIRCHILD
D/C: 00+
Description: The KA3016D is a monolithic integrated circuit, suitable for a 3-phase spindle motor drive of a CD system.
- Table of contents:
KA3016D
-
Suppliers
DataSheet
General Description
KA3016D General Description
The KA3016D is a monolithic integrated circuit, suitable for a 3-phase spindle motor drive of a CD system.
KA3016D Maximum Ratings
| Characteristics | Symbol | Value | Unit |
| Maximum supply voltage (Signal) Maximum supply voltage (Motor) Power dissipation Maximum output current Operating temperature range Storage temperature range |
VCCMAX VMMAX PD IOMAX TOPR TSTG |
7 18 1.7note 1.3 -25 ~ +75 -55 ~ +150 |
V V W A °C °C |
1. When mounted on 76.2mm ´ 114mm ´ 1.57mm PCB (Phenolic resin material)
2. Power dissipation is reduced 13.6 mV / °C for using above Ta=25°C
3. Do not exceed Pd and SOA (Safe operating area).
KA3016D Features
• 3-phase, full-wave, linear BLDC motor driver
• Power save at stop mode
• Built-in current limiter
• Built-in TSD (Thermal shutdown) circuit
• Built-in 3X or 1X hall FG output
• Built-in hall bias circuit
• Built-in rotational direction detector
• Built-in reverse rotation preventer
• Built-in short braker
• Corresponds to 3.3V or 5V DSP
• Power save at stop mode
• Built-in current limiter
• Built-in TSD (Thermal shutdown) circuit
• Built-in 3X or 1X hall FG output
• Built-in hall bias circuit
• Built-in rotational direction detector
• Built-in reverse rotation preventer
• Built-in short braker
• Corresponds to 3.3V or 5V DSP

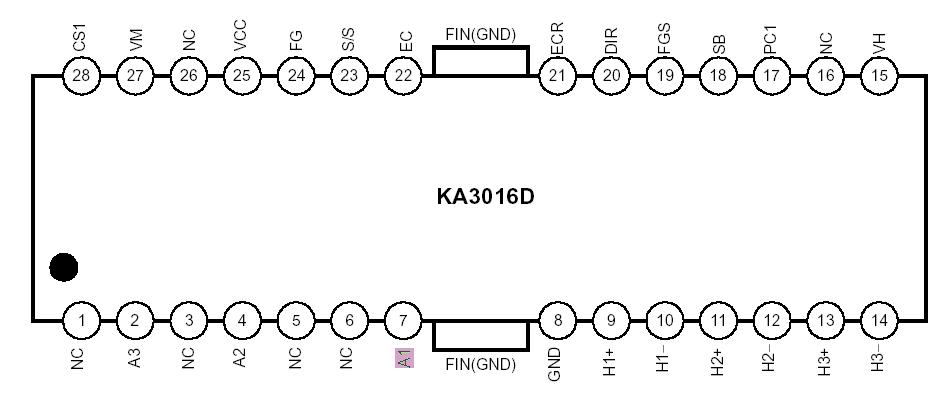

KA3016D Connection Diagram
KA3016D
PDF/DataSheet Download
- Datasheet: KA3016D
- File Size: 535391 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
