KA3100D: Motor / Motion / Ignition Controllers & Drivers Step Motor Driver

KA3100D Data Sheet

Get Latest Price

Part Number:: KA3100D
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

KA3100DTF evaluate
Motor / Motion / Ignition Controllers & Drivers Step Motor Driver
KA311 evaluate
Comparator ICs Single Comparator
KA311_Q evaluate
Comparator ICs Single Comparator

Product Details

Quick Details

Product :	Stepper Motor Controllers / Drivers	Type :	Stepper Motor Controller/Driver
Operating Supply Voltage :	2.5 V to 7 V	Supply Current :	18 mA
Mounting Style :	SMD/SMT	Package / Case :	SOP-16
Packaging :	Tube

Description

Mounting Style : SMD/SMT
Packaging : Tube
Product : Stepper Motor Controllers / Drivers
Type : Stepper Motor Controller/Driver
Supply Current : 18 mA
Package / Case : SOP-16
Operating Supply Voltage : 2.5 V to 7 V

Features:

• Built-in vertical PNP power transistors
• Wide supply voltage range(VCC = 2.5V ~ 7.0V)
• Low saturation voltage (0.4V@ 0.4A)
• Built-in chip enable function
• Built-in shoot-through current protector
• Built-in thermal shutdown(TSD) function
• Built-in current-mode control circuit (IPEAK: 1A)

Application

• Floppy disk drive
• Camera stepping motor
• General stepping motor

Pinout

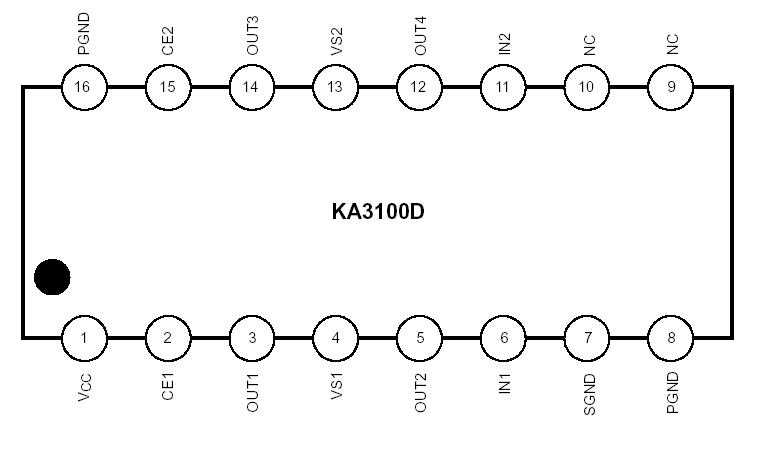

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Supply voltage Power supply voltage Output voltage Input voltage Peak output current Continuous output current Power dissipation Junction temperture Storage temperature Operating temperature	V_CC(MAX) V_S(MAX) V_OUT(MAX) V_IN(MAX) I_O(PEAK) I_O P_D T_J T_STG T_A	9.0 9.0 V_S + V_ef 7.0 1 0.4 0.55 150 −40 ~ 125 −20 ~ 75	V V V V A A W °C °C °C

Description

The KA3100D is a monolithic integrated circuit designed for a two-phase stepping motor driver of a FDD system.
