KA339

Comparator Type :
Number of Channels : 4 Channels
Product : Analog Comparators
Maximum Operating Temperature : + 70 C
Response Time : 1.3 us
Supply Current (Max) : 2 mA
Offset Voltage (Max) : 9 mV
Packaging : Tube
Output Type : Open Collector
Mounting Style : Through Hole
Maximum Power Dissipation : 570 mW
Package / Case : DIP-14


Features:

• Single or Dual Supply Operation
• Wide Range of Supply Voltage
KA239/KA239A, KA339/KA339A, KA2901 : 2 ~ 36V (or ±1 ~ ±18V)
KA3302 : 2 ~ 28V (or ±1 ~ ±14V)
• Low Supply Current Drain 800A Typ.
• Open Collector Outputs for Wired and Connectors
• Low Input Bias Current 25nA Typ.
• Low Input Offset Current ±2.3nA Typ.
• Low Input Offset Voltage ±1.4mV Typ.
• Input Common Mode Voltage Range Includes Ground.
• Low Output Saturation Voltage
• Output Compatible With TTL, DTL and MOS Logic System

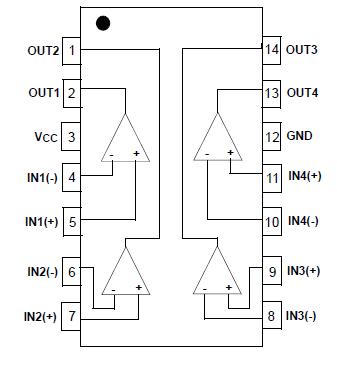

Pinout






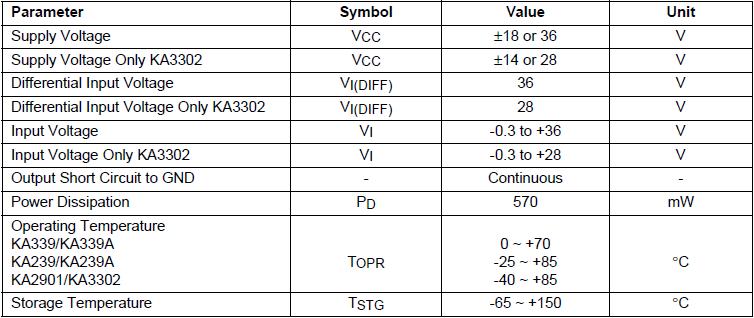

Specifications

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
KA339	Full Production	RoHS Compliant	$0.26	DIP	14	RAIL
KA339D	Full Production	RoHS Compliant	$0.224	SOP	14	RAIL
KA339DTF	Full Production	RoHS Compliant	$0.224	SOP	14	TAPE REEL

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Description

The KA239/KA239A,KA339/KA339A,KA3302,KA2901consist of four independent voltage comparators designedto operate from single power supply over a wide voltagerange.

Parameters:

Technical/Catalog Information	KA339
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Type	General Purpose
Output Type	DTL, MOS, Open-Collector, TTL
Voltage - Supply	2 V ~ 36 V, ±1 V ~ 18 V
Number of Elements	4 - Quad
Package / Case	14-DIP
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	KA339 KA339
