KA7543

Type :
Rise Time :
Fall Time :
Supply Voltage - Max :
Supply Voltage - Min :
Supply Current :
Maximum Power Dissipation :
Maximum Operating Temperature :
Mounting Style :
Package / Case :
Packaging :
Product : Half-Bridge Drivers


Features:

• Lamp Current Feedback
• Soft Start on Feedback
• Voltage Dimming (0V~2V) on Feedback
• Switch off Control (Vdm=5V)
• Soft Dimming Control
• No Lamp Protection
• One Lamp Detection for Feedback
• Abnormal Protection
• Low Start-up and Operating Supply Current
• UVLO with 1.8V Hysteresis
• Totem Pole Output
• Trimmed 1.5% Internal Bandgap Reference
• 14-DIP & 14-SOP


Application

• Electronic Ballast
• Lighting Control System
• Half Bridge Drive Control System

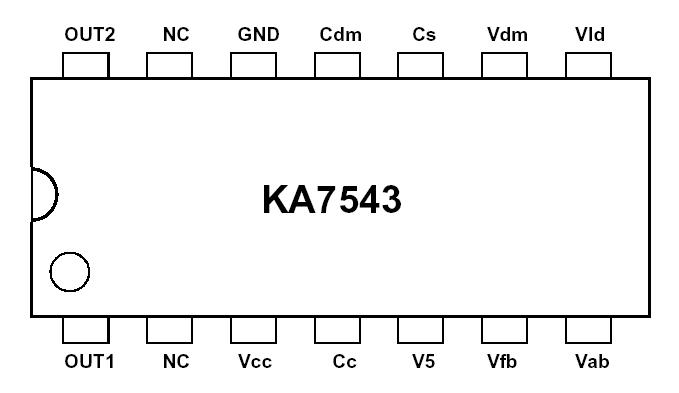

Pinout




Specifications

Parameter	Symbol	Value	Unit
Supply Voltage Peak Drive Output Current Drive Output Clamping Diodes VO > VCC, or VO < -0.3 Operating Temperature Range Storage Temperature Range Power Dissipation Thermal Resistance (Junction-to-Air)	VCC IOH, IOL Iclamp Topr Tstg Pd ja	30 ±300 ±10 -25 to 125 -65 to 150 1 123	V mA mA °C °C W °C/W

Description

The KA7543 is an advanced lamp current feedback dimming control IC. This ballast control IC provides all of the necessary features to implement wide range dimming control, soft start and constant power consumption for intelligent electronic ballast systems. The KA7543 is optimized for advanced electronic ballast systems requiring minimum board area. External component counts can be reduced by adopting the KA7543. Current feedback control method of the inverter status is one of the most attractive merits in KA7543. Internal soft start circuitry eliminates the need for external soft start discrete components. Voltage controlled soft dimming circuit is built into the IC to control the lighting output in a wide range. Protection circuitry, no lamp protection, abnormal protection, one lamp detection, UVLO, restart on lamp adding , have been added.
