Features:

• Built-in brake function.
• Built-in element to absorb a surge current derived from changing motor direction and braking motor drive.
• External motor speed control pin
• Motor direction change circuit.
• Interfaces with CMOS devices.

Application

• Video cassette recorder (VCR) loading motor
• Low current DC motor such audio or video equipment
• General DC motor

Pinout

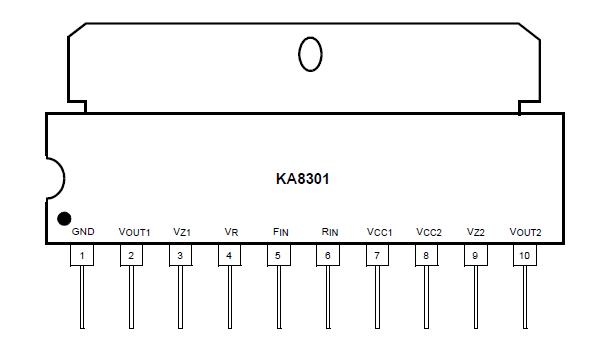

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Supply voltage	Vccmax	18	V
Maximum output current	I_Omax	1.6note1	A
Power dissipation	P_D	15note2	W
Input voltage	V_IN	−0.3 ~ V_CC	V
Operating temperature	T_OPR	−25 ~ +75	°C
Storage temperature	T_STG	−55 ~ +150	°C

Notes:
1. Duty 1/100, pulse width 500s
2. 1) When mounted on glass epoxy PCB (76.2 * 114 * 1.57mm)
2) Power dissipation reduces 120mW / °C for using above Ta=25°C
3) Do not exceed Pd and SOA(Safe Operating Area).

Description

The KA8301 is a monolithic integrated circuit designed for driving bi-directional DC motor with braking and speed control, and it is suitable for the loading motor driver of VCR systems. The speed control can be achieved by adjusting the external voltage of the speed control pin.
