KAD2708L

Features:

• On-chip reference
• Internal track and hold
• 1.5VPP differential input voltage
• 600MHz analog input bandwidth
• Two's complement or binary output
• Over-range indicator
• Selectable ÷2 Clock Input
• LVDS compatible outputs


Application

• High-Performance Data Acquisition
• Portable Oscilloscope
• Medical Imaging
• Cable Head Ends
• Power-Amplifier Linearization
• Radar and Satellite Antenna Array Processing
• Broadband Communications
• Local Multipoint Distribution System (LMDS)
• Communications Test Equipment

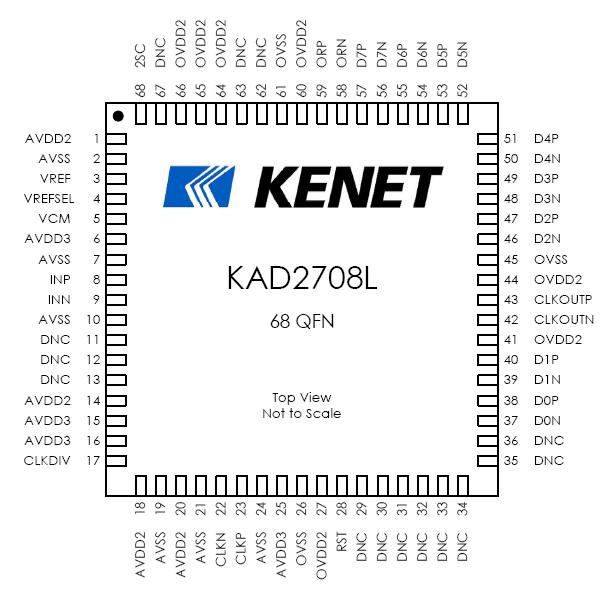

Pinout




Specifications

Parameter	Min	Max	Unit
AVDD2 to AVSS	-0.4	2.1	V
AVDD3 to AVSS	-0.4	3.7	V
OVDD2 to OVSS	-0.4	2.1	V
Analog Inputs to AVSS	-0.4	AVDD3 + 0.3	V
Logic Inputs to AVSS (VREFSEL, CLKDIV)	-0.4	AVDD3 + 0.3	V
Logic Inputs to OVSS (RST, 2SC)	-0.4	OVDD2 + 0.3	V
VREF TO AVSS	-0.4	AVDD3 + 0.3	V
Analog Output Currents		10	mA
Logic Output Currents		10	mA
LVDS Output Currents		10	mA
Operating Temperature	-40	85	°C
Storage Temperature	-65	150	°C
Junction Temperature		150	°C

1. Exposing the device to levels in excess of the maximum ratings may cause permanent damage.
Operation at maximum conditions for extended periods may affect device reliability

Description
