KB8527B

Features:

` Operating voltage range : 2.0V ~ 5.5V
` Typical supply current : 13.5mA at 3.6V
` Built - in low battery detection function ( selectable 3.45V, 3.3V, 3.0V, 2.2V, 2.1V )
` Built - in speaker amplifier
     Built - in splatter filter
     Built - in dual conversion receiver, compandor and universal PLL
` FM Receiver
- Complete dual coversion circuit
- Excellent input sensitivity (0.7mVrms at 20dB SINAD)
` Compandor
- Easy gain control to use external component
- Included ALC (Automatic Level Control) circuit
- Included Mute logic
` Universal PLL
- RX (TX) divided counter range : 1/16 ~ 1/16383
- Reference frequency divided counter range : 1/16 ~ 1/4095
- Lock detector signal output
- Serial interface with MICOM for controlling each block

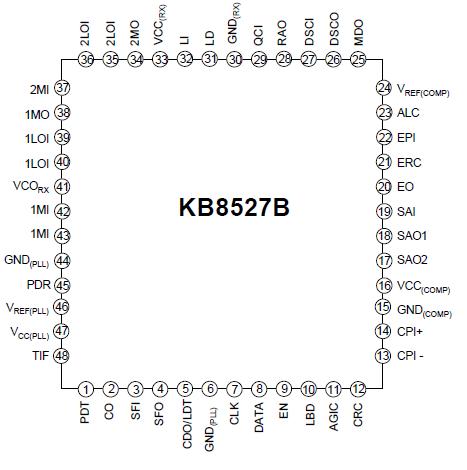

Pinout




Specifications

Parameter	Symbol	Ratings	Unit
Maximum Supply Voltage	VCC	5.5	V
Power Dissipation	PD	600	mW
Operating Temperature	TOPR	-20 ~ + 70	°C
Storage Temperature	TSTG	- 55 ~ + 150	°C

Description

KB8527B is a monolithic circuit which can be used in high performance 60MHz MCA type CLP System.

The KB8527B is a subsystem IC for FM / FSK receiving systems and a complete one chip FM / FSK receiver IC for 60MHz system. It`s feature includes receiving functions for FM / FSK systems, a compandor to remove external noise, and PLL ( Phase Lock Loop ) of channel selection which blocks surrounding frequency interference.

The KB8527B can be used with a wide range of FM / FSK VHF bandwidth systems, including cordless phone, and the narrow band voice and data sending / receiving systems. To make applications easily and simply, pheripheral parts are minimized.
