Part Number: KM110BH
Description: The KM110BH/2430 and the KM110BH/2470 are sensor modules for contactless measurement of angular displa...
- Table of contents:
KM110BH
-
Suppliers
DataSheet
General Description
KM110BH General Description
The KM110BH/2430 and the KM110BH/2470 are sensor modules for contactless measurement of angular displacements of strong magnetic fields. The modules are a ready-trimmed (sensitivity and zero point) combination of a magnetoresistive KMZ sensor and a signal conditioning circuit in hybrid technology.
The KM110BH/2430 delivers a voltage output signal which is a linear function of the direction of the magnetic field. The KM110BH/2470 delivers a sinusoidal voltage output signal. The modules can be used for contactless angle measurement.
KM110BH Features
` Angle measuring range 30°or 70°
` Contactless, therefore wear-free and no microlinearity problems
` Easy to mount, ready for use
` Analog voltage output signal
` Operating temperatures up to 125
` Precision of ± 0.5° in the temperature range (-15° a +15°)
` EMC resistant
` Sample kit with magnet available.

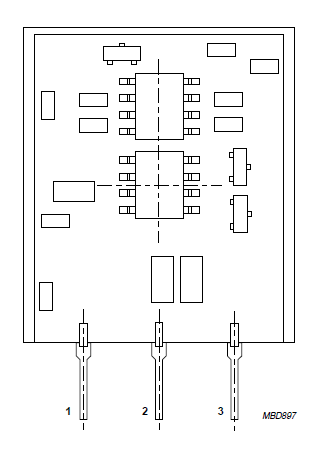

KM110BH Connection Diagram
KM110BH
PDF/DataSheet Download
- Datasheet: KM110BH
- File Size: 110683 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
