Part Number: KM41V4000D
Description: This is a family of 4,194,304 x 1bit Fast Page Mode CMOS DRAMs. Fast Page Mode offers high speed rando...
- Table of contents:
KM41V4000D
-
Suppliers
DataSheet
General Description
KM41V4000D General Description
This is a family of 4,194,304 x 1bit Fast Page Mode CMOS DRAMs. Fast Page Mode offers high speed random access of memory cells within the same row. Power supply voltage (+5V or +3.3V), access time (-5, -6 or -7), power consumption(Normal or Low power), and package type (SOJ or TSOP-II) are optional features of this family. All of this family have CAS-before-RAS refresh, RAS-only refresh and Hidden refresh capabilities. Furthermore, self-refresh operation is available in Low power version. This 4Mx1 Fast Page Mode DRAM family is fabricated using Samsung¢s advanced CMOS process to realize high band-width, low power consumption and high reliability. It may be used as main memory for main frames and mini computers, personal computer and high performance
microprocessor systems.
KM41V4000D Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit | |
|
3.3V |
5V | |||
|
Voltage on any pin relative to VSS |
VIN,VOUT |
-0.5 to +4.6 |
-1 to +7.0 |
V |
|
Voltage on VCC supply relative to VSS |
TVCC |
-0.5 to +4.6 |
-1 to +7.0 |
V |
|
Storage Temperature |
Tstg |
-55 to +150 |
-55 to +150 |
°C |
|
Power Dissipation |
PD |
600 |
600 |
mW |
|
Short Circuit Output Current |
IOS |
50 |
50 |
mA |
should be restricted to the conditions as detailed in the operational sections of this data sheet. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
KM41V4000D Features
• Part Identification - KM41C4000D/D-L(5V, 1K Ref.) - KM41V4000D/D-L(3.3V, 1K Ref.)
• Fast Page Mode operation
• CAS-before-RAS refresh capability
• RAS-only and Hidden refresh capability
• Self-refresh capability (3.3V, L-ver only)
• Fast parallel test mode capability
• TTL(5V)/LVTTL(3.3V) compatible inputs and outputs
• Common I/O using early write
• JEDEC Standard pinout
• Available in 26(20)-pin SOJ 300mil and TSOP(II) 300mil packages
• +5V±10% power supply(5V product)
• +3.3V±0.3V power supply(3.3V product)
• Fast Page Mode operation
• CAS-before-RAS refresh capability
• RAS-only and Hidden refresh capability
• Self-refresh capability (3.3V, L-ver only)
• Fast parallel test mode capability
• TTL(5V)/LVTTL(3.3V) compatible inputs and outputs
• Common I/O using early write
• JEDEC Standard pinout
• Available in 26(20)-pin SOJ 300mil and TSOP(II) 300mil packages
• +5V±10% power supply(5V product)
• +3.3V±0.3V power supply(3.3V product)

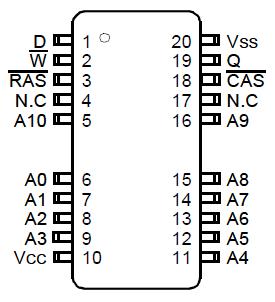

KM41V4000D Connection Diagram
KM41V4000D
PDF/DataSheet Download
- Datasheet: KM41V4000D
- File Size: 351509 KB
- Manufacturer: SAMSUNG [Samsung semiconductor]
- Click here to Download
