Product Details

Description

Features:

Process Technology : 0.6§ CMOS
Organization : 128Kx8
Power Supply Voltage : Single 5.0V ¡¾ 10%
Low Data Retention Voltage : 2V(Min)
Three state output and TTL Compatible
Package Type : JEDEC Standard 32-DIP, 32-SOP, 32-TSOP I R/F

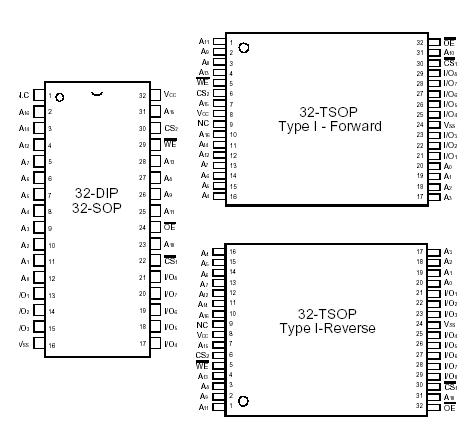

Pinout

Connection Diagram

Specifications

Parameter		Rating	SYMBOL	UNIT	Remark
Voltage on Any Pin Relative to V _SS		-0.5 to 7.0	IO	V	-
Voltage on VCC Supply Relative to V_SS		-0.5 to 7.0	I_FSM	V	-
Power Dissipation		1.0	V_R	W	-
Storage Temperature		-65 to 150	T _j	..	KM681000BL/L-L
Operating Temperature	Commercial	0 to 70	T_A	..	KM6164000BL-L
Operating Temperature	Industrial	-40 to 85	T_A	..	KM6164000BL-L
Soldering temperature and time		260°C, 10sec(Lead Only)	TSOLDER	..	-

Description

The KM681000B family is fabricated by SAMSUNG's advanced CMOS process technology. The family can support various operating temperature ranges and have various package types for user flexibility of system design. The family also support low data retention voltage for battery back-up operation with low data retention current.
