KMA200

Features: · Magnetic field angular sensing· Resolution 0.1°· Accuracy better than 0.6°· Maximum angular range 0° to 180°· Programmable angle range· Temperature range from -40 to +125 °C· User programmable EEPROM· Ratiometric analog output· 13-bit digital output· Bi-directional digital Serial Perip...

product image

KMA200 Picture
See larger image
SeekIC No. : 004386258 Detail

KMA200: Features: · Magnetic field angular sensing· Resolution 0.1°· Accuracy better than 0.6°· Maximum angular range 0° to 180°· Programmable angle range· Temperature range from -40 to +125 °C· User progra...

KMA200 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KMA200
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Magnetic field angular sensing
· Resolution 0.1°
· Accuracy better than 0.6°
· Maximum angular range 0° to 180°
· Programmable angle range
· Temperature range from -40 to +125 °C
· User programmable EEPROM
· Ratiometric analog output
· 13-bit digital output
· Bi-directional digital Serial Peripheral Interface (SPI)
· Adjustable zero point offset
· On-line diagnosis for all main functional blocks
· Switch-off function at persistent overvoltage
· Temperature supervision
· Pre-calibrated delivery.


Pinout

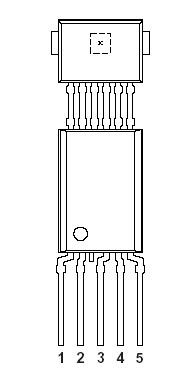

Connection Diagram Connection Diagram


Description

The KMA200 is a programmable angle sensor, employing the magnetoresistive effect of thin-film permalloy for sensing the angle between an external magnetic field in the sensor plane and the sensor. The sensor consists of two galvanic separated wheatstone bridges and an integrated circuit.

The KMA200 is user programmable. This allows user specific adjustment of the angular range and zero point, and the storage of a 32-bit identifier. The data is held permanently in an EEPROM.

The KMA200 can be programmed to work either in analog or digital (SPI) output. One of four different analog output characteristics may be selected. The implemented on-line diagnosis monitors the input and output signals as well as the data processing. Deviations and failures of the angle value are indicated in the output signal. An overall temperature supervision is implemented.
