KP1040E

Features: Current transfer ratio (CTR:MIN.50% at IF=5mA Vce=5V)High isolation voltage between input and output (Viso:5000Vrms).Compact dual-in-line package.Available package : DIP/ SMD/ H. (For Package Dimension please refer to page 84 )ApplicationRegisters, copiers, automatic vending machines.Sys...

product image

KP1040E Picture
See larger image
SeekIC No. : 004386530 Detail

KP1040E: Features: Current transfer ratio (CTR:MIN.50% at IF=5mA Vce=5V)High isolation voltage between input and output (Viso:5000Vrms).Compact dual-in-line package.Available package : DIP/ SMD/ H. (For Pack...

KP1040E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KP1040E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Current transfer ratio (CTR:MIN.50% at IF=5mA Vce=5V)
 High isolation voltage between input and output (Viso:5000Vrms).
 Compact dual-in-line package.
 Available package : DIP/ SMD/ H. (For Package Dimension please refer to page 84 )


Application

Registers, copiers, automatic vending machines.
System appliances, measuring instruments.
Computer terminals, programmable controllers.
Communications, telephone, etc.
Electric home appliances, such as oil fan heaters, Microwave oven, Washer, Refrigerator, Air conditioner, etc.
Medical instruments, physical and chemical equipment.
Signal transmission between circuits of different potentials and impedances.
Facsimile equipment, Audio, Video.
Switching power supply, Laser beam printer.


Pinout

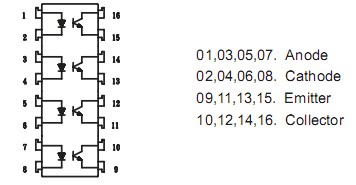

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Input Forward current IF 50 mA
Peak forward current IFM 1 A
Reverse voltage VR 6 V
Power dissipation PD 70 mW
Output Collector-emitter voltage VCEO 60 V
Emitter-collector voltage VECO 6 V
Collector current IC 50 mA
Collector power dissipation PC 150 mW
Total power dissipation Ptot 200 mW
Isolation voltage 1 minute Viso 5000 Vrms
Operating temperature Topr -30 to +100 °C
Storage temperature Tstg -55 to +125 °C
Soldering temperature 10 second Tsol 260 °C
