KPY54R
-
Suppliers
DataSheet
General Description
KPY54R Maximum Ratings
|
Parameter |
Symbol |
Limit Values1) |
Unit | |
| Pressure overload |
PMAX |
16 |
16 |
bar |
| Operating temperature range |
TA |
- 40. + 125 |
||
| Storage temperature range |
Tstg |
- 50. + 150 |
||
| Supply voltage |
VIN |
12 |
V | |
1) Frontside coupling applies pressure onto chip face. Rearside coupling applies pressure through Kovar centre tube.
KPY54R Features
• Low pressure and temperature hysteresis
• Fast response
• High sensitivity and linearity
• Fatigue free monocrystaline silicon diaphragm giving high load cycle stability
• High long term stability
• Built in silicon temperature sensor
• Media compatible stainless housing
• Fast response
• High sensitivity and linearity
• Fatigue free monocrystaline silicon diaphragm giving high load cycle stability
• High long term stability
• Built in silicon temperature sensor
• Media compatible stainless housing

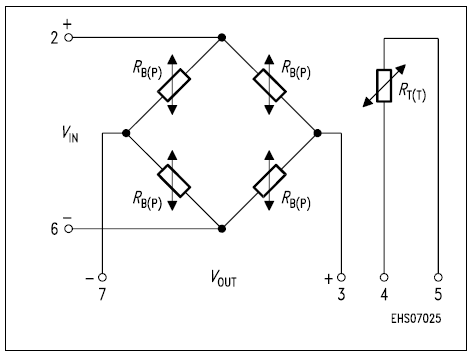

KPY54R Connection Diagram
KPY54R
PDF/DataSheet Download
- Datasheet: KPY54R
- File Size: 122595 KB
- Manufacturer: SIEMENS [Siemens Semiconductor Group]
- Click here to Download
