Part Number: KS0066U
Description: KS0066U is a dot matrix LCD driver & controller LSI whichis fabricated by low power CMOS technolog...
- Table of contents:
KS0066U
-
Suppliers
DataSheet
General Description
KS0066U General Description
KS0066U is a dot matrix LCD driver & controller LSI whichis fabricated by low power CMOS technology.
It can display 1or 2 lines with the 5´8 dots format or 1 line with the 5´11 dots format.
KS0066U Features
• Internal Memory
- Character Generator ROM (CGROM): 10,080 bits (204 characters´5´8 dots) & (32 characters´5´11 dots)
- Character Generator RAM (CGRAM): 64´8 bits (8 characters´5´8 dots)
- Display Data RAM (DDRAM): 80´8 bits (80 characters max.)
• Low power operation
- Power supply voltage range (VDD): 2.7 to 5.5 V
- LCD Drive voltage range (VDD-V5): 3.0 to 13.0 V
• CMOS process
• Programmable duty cycle: 1/8, 1/11, 1/16
• Internal oscillator with external resistor
• Low power consumption
• 80 QFP or bare chip available
- Character Generator ROM (CGROM): 10,080 bits (204 characters´5´8 dots) & (32 characters´5´11 dots)
- Character Generator RAM (CGRAM): 64´8 bits (8 characters´5´8 dots)
- Display Data RAM (DDRAM): 80´8 bits (80 characters max.)
• Low power operation
- Power supply voltage range (VDD): 2.7 to 5.5 V
- LCD Drive voltage range (VDD-V5): 3.0 to 13.0 V
• CMOS process
• Programmable duty cycle: 1/8, 1/11, 1/16
• Internal oscillator with external resistor
• Low power consumption
• 80 QFP or bare chip available

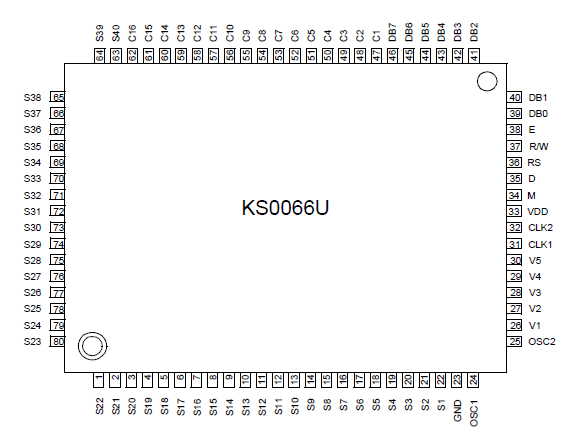

KS0066U Connection Diagram
KS0066U
PDF/DataSheet Download
- Datasheet: KS0066U
- File Size: 553815 KB
- Manufacturer: SAMSUNG [Samsung semiconductor]
