General Description
KS16114 General Description
The KS16112 and KS16114 are synchronous, half - duplex modems capable of speeds up to 9600 bps ( KS16112 ) or up to 14400 bps ( KS16114 ).
These modem devices can operate over the public switched telephone network ( PSTN ) with the addition of the appropriate data access arrangement ( DAA ).
These modems satisfy the requirements specified in ITU-T re - commendations V.17 ( KS16114 ), V.29, V.27 ter, V.21 Channel 2 and T.4, and meet the binary signaling requirements of T.30.
These products are intended to be used in Group 3 facsimile machines or fax processing boards and can operate at 14400 ( KS16114 ), 12000 ( KS16114 ), 9600, 7200, 4800, 2400 or 300 bps depending on the selected configuration.
These devices also feature V.17 short train ( KS16114 ) and V.27 ter short train and three programmable tone detectors as well as a pro - grammable DTMF receiver. Additionally, HDLC framing ( according to T.30 ) at 14400 ( KS16114 ), 12000 ( KS16114 ), 9600, 7200, 4800, 2400 or 300 bps is also featured.
KS16114 Maximum Ratings
|
Characteristics |
Symbol |
Value |
Units |
| Positive Digital Supply Voltage |
VDD |
5V ± 5 % |
V |
| Positive Analog Supply Voltage |
VCC |
5V ± 5 % |
V |
| Negative Analog Supply Voltage |
VBB |
-5V ± 5 % |
V |
| Power Dissipation |
PD |
400 (KS16112) 550 (KS16114) |
mw |
| Operating Temperature |
TOPR |
0 ~ 70 |
·· |
| Storage Temperature |
TSTG |
-55 ~ 150 |
·· |
KS16114 Features
• Group 3 facsimile transmission / reception according to :
- ITU-T V.17 short and long train ( KS16114 )
- ITU-T V.29, V.27 ter short and long train, V.21 Ch.2, T.30 and T.4
• Half - duplex operation
• Receiver dynamic range : 0 dBm to - 43 dBm
• Programmable transmit level : 0 dBm to - 15 dBm
• Programmable dual tone generation
• Programmable tone detection
• Programmable interface memory interrupt
• Programmable turn on and turn off thresholds
• Automatic T/ 2 adaptive equalizer
• HDLC capability at all speeds
• Diagnostic capability allowing telephone line quality monitoring
• ITU-T V.24 compatible interface
• TTL and CMOS compatible
• Low power consumption, KS16112 : 400mW typical, KS16114 : 550mW typical
• Programmable compromise filter for high speed RX modes
- ITU-T V.17 short and long train ( KS16114 )
- ITU-T V.29, V.27 ter short and long train, V.21 Ch.2, T.30 and T.4
• Half - duplex operation
• Receiver dynamic range : 0 dBm to - 43 dBm
• Programmable transmit level : 0 dBm to - 15 dBm
• Programmable dual tone generation
• Programmable tone detection
• Programmable interface memory interrupt
• Programmable turn on and turn off thresholds
• Automatic T/ 2 adaptive equalizer
• HDLC capability at all speeds
• Diagnostic capability allowing telephone line quality monitoring
• ITU-T V.24 compatible interface
• TTL and CMOS compatible
• Low power consumption, KS16112 : 400mW typical, KS16114 : 550mW typical
• Programmable compromise filter for high speed RX modes

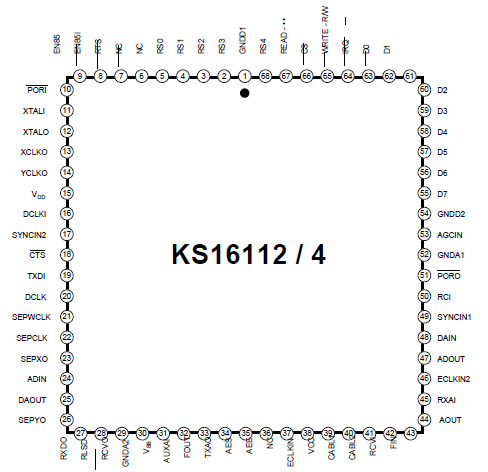

KS16114 Connection Diagram
KS16114
PDF/DataSheet Download
- Datasheet: KS16114
- File Size: 525907 KB
- Manufacturer: SAMSUNG [Samsung semiconductor]
- Click here to Download
