KS57C01502

Features:

Memory
` 512 ´ 4-bit data memory (RAM)
` 2048 ´ 8-bit program memory
(ROM):KS57C01502
4096 ´ 8-bit program memory
(ROM):KS57C01504
24 I/O Pins
` I/O: 18 pins, including 8 high current pins
` Input only: 6 pins
Comparator
` 4-channel mode:
Internal reference (4-bit resolution)
16-step variable reference voltage
` 3-channel mode:
External reference
150 mV resolution (worst case)
8-bit Basic Timer
` Programmable interval timer
` Watch-dog timer
8-bit Timer/Counter 0
` Programmable interval timer
` External event counter function
Timer/counter clock output to TCLO0 pin Watch Timer
` Time interval generation: 0.5 s, 3.9 ms at 4.19
MHz
` 4 frequency outputs to BUZ pin
8-bit Serial I/O Interface
` 8-bit transmit/receive mode
` 8-bit receive-only mode
` LSB-first or MSB-first transmission selectable
` Internal or external clock source
Bit Sequential Carrier
` Supports 16-bit serial data transfer in arbitrary format
Interrupts
` Two external interrupt vectors
` Three internal interrupt vectors
` Two quasi-interrupts
Memory-Mapped I/O Structure
` Data memory bank 15
Two Power-Down Modes
` Idle mode: Only CPU clock stops
` Stop mode: System clock stops
OSCILLATION SOURCES
` Crystal, Ceramic for system clock
` Crystal/ceramic: 0.4 - 6.0 MHz
` CPU clock divider circuit (by 4. 8, or 64)
Instruction Execution Times
` 0.95, 1.91, 15.3 s at 4.19 MHz
` 0.67, 1.33, 10.7 s at 6.0 MHz
Operating Temperature
` 40 °C to 85 °C
Operating Voltage Range
` 1.8 V to 5.5 V
Package Type
` 30 SDIP, 32 SOP

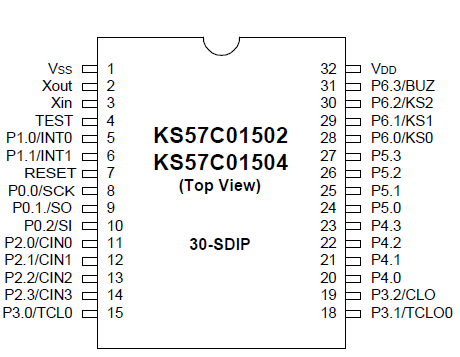

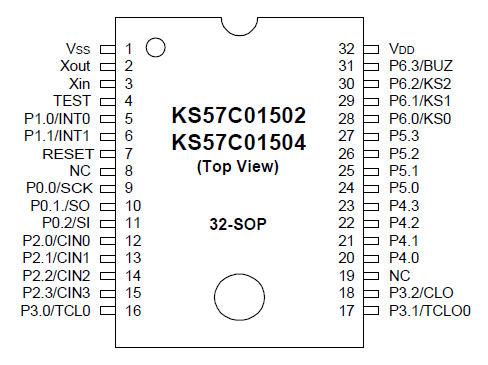

Pinout

Specifications

Parameter	Symbol	Conditions	Rating	Units
Supply Voltage	VDD	-	0.3 to + 6.5	V
Input Voltage	VI	All I/O ports	0.3 to VDD + 0.3	V
Output Voltage	VO	-	0.3 to VDD + 0.3	V
Output Current High	IOH	One I/O port active	-5	mA
		All I/O ports active	-15
Output Current Low	IOL	Ports 0, 3, and 6	5	mA
		Ports 4 and 5	15
		All ports, total	100
Operating Temperature	TA	-	40 to + 85
Storage Temperature	Tstg	-	65 to + 150

Description

The KS57C01502 single-chip CMOS microcontroller has been designed for high-performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers).

The KS57P01504 is the microcontroller which has 4 Kbyte one-time-programmable ROM and the functions are the same to KS57C01502/C01504. With a four-channel comparator, eight LED direct drive pins, serial I/O interface, and its versatile 8-bit timer/counter, the KS57C01502/C01504 offers an excellent design solution for a wide variety of general-purpose applications.

Up to 24 pins of the 30-pin SDIP package can be dedicated to I/O. Five vectored interrupts provide fast response to internal and external events. In addition, the KS57C01502/C01504's advanced CMOS technology provides for very low power consumption and a wide operating voltage range - all at a very low cost.
